SELECT A DIAGRAM

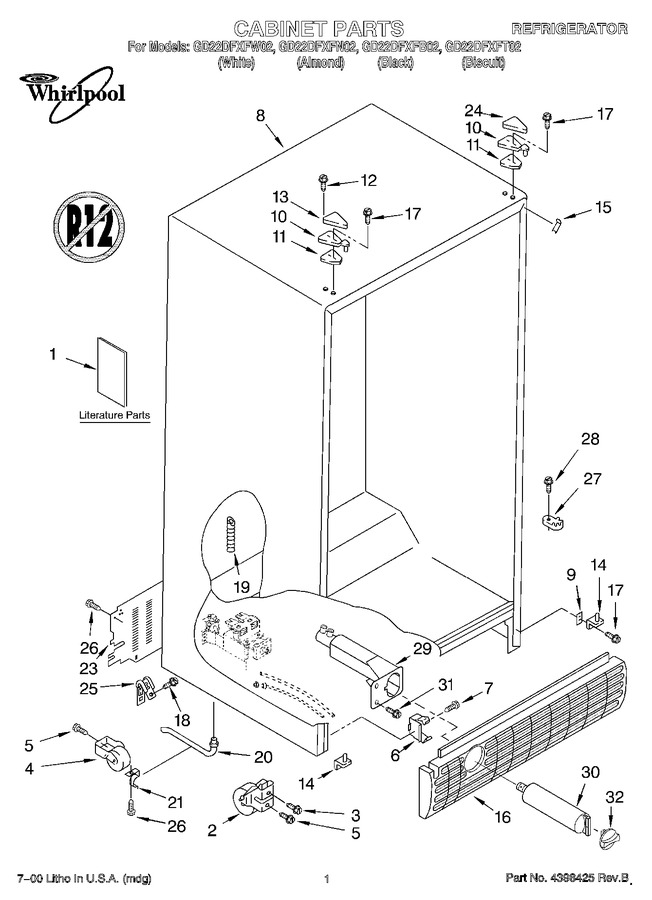

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2205958		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2206393		Energy Label		Appelez-nous	-
1	LIT2200280		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
9	WP2181911		Shim   (Replaces: 2156056)				$ 33.21
10	WP2196046		Hinge, Top (2)   (Replaces: 2196046)				$ 104.44
11	2196048		Shim, Hinge Top		Appelez-nous	-
12	489284		Screw		Appelez-nous	-
13	2186858		Hinge Cover (biscuit)		Appelez-nous	-
13	2151694		Hinge Cover (black)		Appelez-nous	-
13	1129262		Hinge Cover (white)				$ 15.75
13	2150343		Hinge Cover (almond)		Appelez-nous	-
14	8201707		Hinge Bottom (2)   (Replaces: 2171851)				$ 88.90
15	2196095		Filler, Wrapper (almond)		Appelez-nous	-
15	2196094		Filler, Wrapper (white)		Appelez-nous	-
15	2196097		Filler, Wrapper (black)		Appelez-nous	-
15	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
16	W10802713		Grille (biscuit)   (Replaces: 2198467T)				$ 121.84
16	W10802713		Grille (almond)   (Replaces: 2198467N)				$ 121.84
16	W10802713		Grille (white)   (Replaces: 2198467W)				$ 121.84
16	W10802713		Grille (black)   (Replaces: 2198467B)				$ 121.84
17	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
19	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 50.90
20	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
21	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
23	WP2188756		Cover, Unit   (Replaces: 2171938)				$ 141.67
24	2155938		Hinge Cover (black)				$ 15.55
24	1119787		Hinge Cover (white)				$ 22.50
24	2186857		Hinge Cover (biscuit)		Appelez-nous	-
24	1119789		Hinge Cover (almond)		Appelez-nous	-
25	549193		Clamp-service Cord				$ 13.39
26	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
27	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
28	WP489483		Screw   (Replaces: 489483)				$ 10.87
29	WP2186443		Housing, Water Filter   (Replaces: 2186443)			Immediately	$ 97.35
30	EDR5RXD1B		Filter, Water   (Replaces: 2203220)			Immediately	$ 49.99
31	WP489500		Screw   (Replaces: 489500)				$ 7.78
32	WP2186494T		Cap, Water Filter (biscuit)   (Replaces: 2186494T)				$ 11.88
32	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186494W)				$ 55.72
32	2186494N		Cap, Water Filter (almond)		Appelez-nous	-
32	WP2186494B		Cap, Water Filter (black)   (Replaces: 2186494B)			Immediately	$ 53.20

    View Diagram in Separate Window       Print Part List
