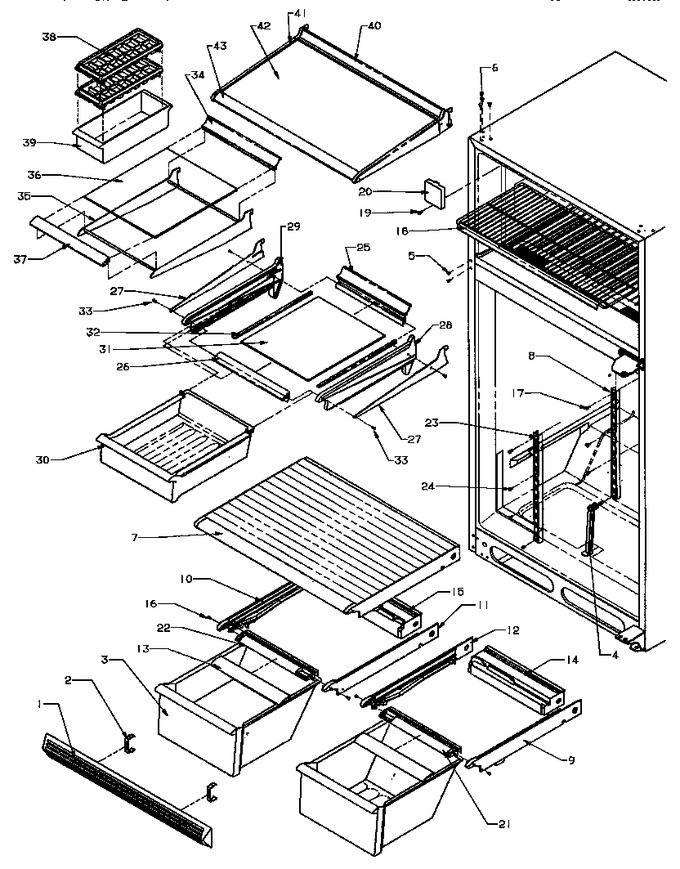

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10474901 | Grille, Toe (18) |
|
- | |||||
| 2 | 10551501 | Clip-toe Grille |
|
- | |||||
| 3 | 10430214 | Pan, Crisper |
|
- | |||||
| 4 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 5 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 6 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 5.98 | ||||
| 7 | 10488502 | Top, Crisper |
|
- | |||||
| 8 | D7599105 | Ladder, Side |
|
- | |||||
| 9 | 10432701 | Rail, Side Crisper |
|
- | |||||
| 10 | 10432702 | Rail, Side Crisper |
|
- | |||||
| 11 | 10432803 | Rail, Ctr. Crisper |
|
- | |||||
| 12 | 10432804 | Rail, Ctr. Crisper |
|
- | |||||
| 13 | 10688020 | Extr, Crisper Front |
|
- | |||||
| 14 | 10433805 | Rail, Crisper Back |
|
- | |||||
| 15 | 10435605 | Rail, Crisper Back |
|
- | |||||
| 16 | 67006692 | Screw, Hi Lo (Replaces: M0237932) |
|
$ 10.79 | |||||
| 17 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 18 | Y10440001 | Shelf, Wire Frz. (18) |
|
- | |||||
| 19 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 20 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 21 | 10687701 | Rail, Crisper Fr0nt(r) |
|
- | |||||
| 22 | 10687702 | Rail, Crisper Front(l) |
|
- | |||||
| 23 | D7599002 | Ladder, Center |
|
- | |||||
| 24 | M0230923 | Screw |
|
- | |||||
| 25 | 10451402 | Extrusion Mk Rear |
|
- | |||||
| 26 | 10450312 | Extusion, Mt Kpr Frt |
|
- | |||||
| 27 | 10681402 | Rail, Pntd |
|
- | |||||
| 28 | 10417301 | Glide, Meat Kpr. |
|
- | |||||
| 29 | 10432101 | Glide, Meat Kpr. |
|
- | |||||
| 30 | 10417114 | Pan, Mt Kpr |
|
- | |||||
| 31 | 10370014 | Glass, Shelf (18-19) |
|
- | |||||
| 32 | 10562502 | Ext, Gl Shelf Side |
|
- | |||||
| 33 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 34 | 10946002 | Extr, Rear Shelf |
|
- | |||||
| 35 | 10460101 | Shelf, Glass Frame |
|
- | |||||
| 36 | Y10370015 | Usr 10370097 (18) |
|
- | |||||
| 37 | 10459907 | Extrusion, Frt Shelf |
|
- | |||||
| 38 | WP841180A | Ice Tray (Replaces: D7725402) |
|
Immediately | $ 47.84 | ||||
| 39 | 10423128 | Bin-utility |
|
- | |||||
| 40 | 10946003 | Extr, Rear Shelf |
|
- | |||||
| 41 | 10460104 | Frame, Glass Shelf (full) |
|
- | |||||
| 42 | Y10370054 | Glass, Full Shelf |
|
- | |||||
| 43 | 10459908 | Extrusion, Frt Shelf |
|
- | |||||
| NI | 10480406 | Ass`y, Glass Shelf |
|
- | |||||
| NI | 10480407 | Ass`y, Glass Shelf |
|
- | |||||
| NI | 10698512 | Ass`y, Crisper Frame |
|
- |
