SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow

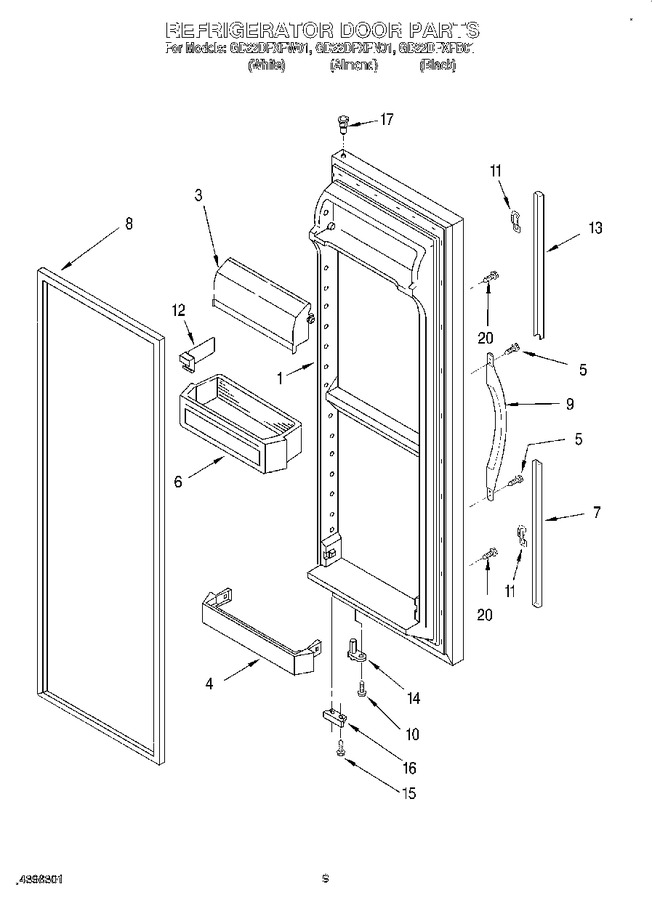

06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194275N		Refrigerator Door (includes Item No.8) (almond)		Appelez-nous	-
1	2194275B		Refrigerator Door (includes Item No.8) (black)		Appelez-nous	-
1	2194275W		Refrigerator Door (includes Item No.8) (white)		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 85.16
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
5	WP489491		Screw   (Replaces: 489491)				$ 6.95
6	WPW10321304		Shelf Bin (3)   (Replaces: 2179607)			Immediately	$ 44.73
7	2194969N		Extension, Bottom (almond)		Appelez-nous	-
7	WP2194969B		Extension, Bottom (black)   (Replaces: 2194969B)				$ 116.40
7	2194969W		Extension, Bottom (white)				$ 5.51
8	2159073		Door Gasket, Magnetic (service) (mist Beige)				$ 317.32
8	2159081		Door Gasket, Magnetic (service) (black)				$ 319.60
9	2186649N		Handle, Center (almond)		Appelez-nous	-
9	2186649W		Handle, Center (white)				$ 70.49
9	2186649B		Handle, Center (black)				$ 72.96
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.40
12	2195496		Divider, Bin		Appelez-nous	-
13	2194971W		Extension, Top (white)				$ 44.85
13	WP2194971B		Extension, Top (black)   (Replaces: 2194971B)				$ 106.63
13	2194971N		Extension, Top (almond)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	2195952		Bracket, Door Stop (black)		Appelez-nous	-
16	2195950		Bracket, Door Stop (chrome)				$ 5.84
17	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 7.76
20	WP3400852		Screw   (Replaces: 3400852)				$ 9.84

    View Diagram in Separate Window       Print Part List
