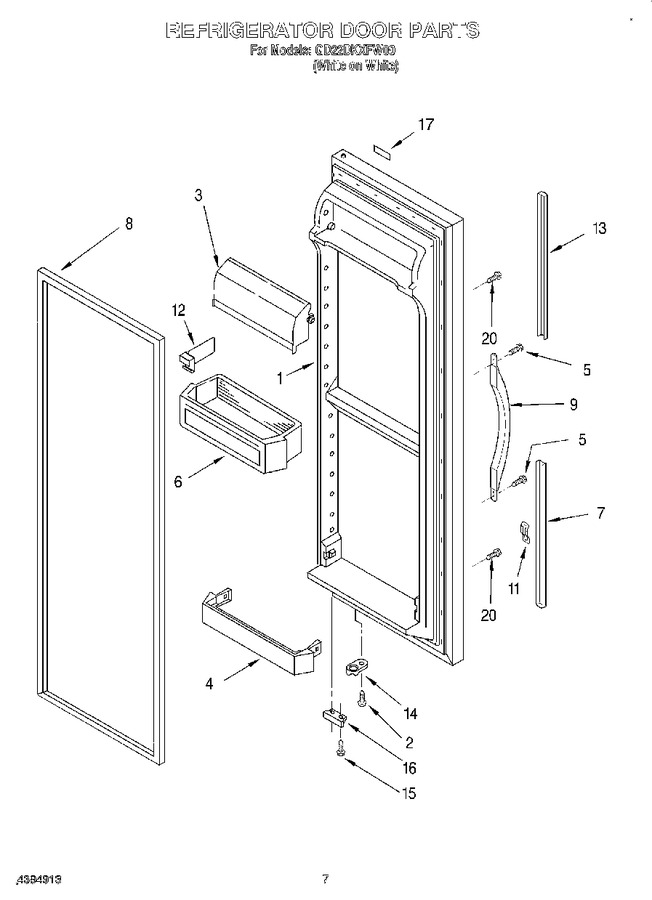

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194275W		Refrigerator Door (includes Item No.8)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 78.61
5	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	WPW10321304		Shelf Bin (3)   (Replaces: 2179607)			Immediately	$ 44.95
7	2194970W		Extension, Bottom		Appelez-nous	-
8	2159073		Door Gasket, Magnetic (service) (mist Beige)				$ 333.19
9	2193345W		Handle, Center		Appelez-nous	-
11	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
12	2195496		Divider, Bin		Appelez-nous	-
13	2194972W		Extension, Top		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
15	WP999367		Screw   (Replaces: 489367)				$ 8.56
16	2195950		Bracket, Door Stop				$ 5.84
17	2186437		Nameplate		Appelez-nous	-
20	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
