SELECT A DIAGRAM

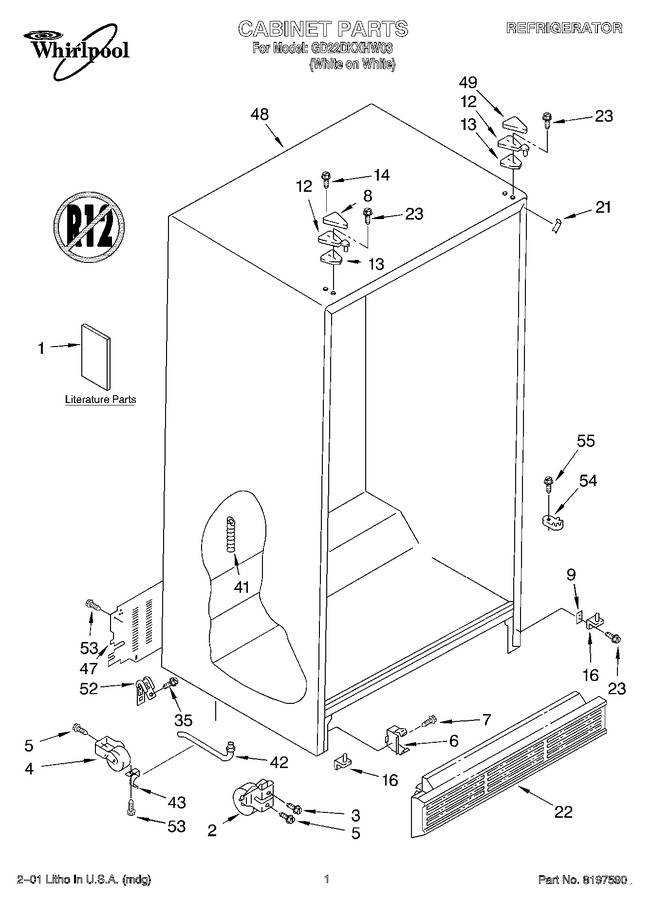

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Refrigerator Door


07 - Freezer Door


08 - Unit


09 - Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2205958		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2211856		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT2205853		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 14.42
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 42.18
5	WP489427		Screw   (Replaces: 489427)				$ 7.84
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 8.11
7	WP489478		Screw   (Replaces: 489478)				$ 8.18
8	1129262		Hinge Cover				$ 15.75
9	2209697		Shim				$ 41.25
12	WP2196046		Hinge, Top (2)   (Replaces: 2196046)				$ 104.44
13	2196048		Shim, Hinge Top		Appelez-nous	-
14	489284		Screw		Appelez-nous	-
16	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 97.45
21	2196094		Filler, Wrapper		Appelez-nous	-
22	W11167901		Grille   (Replaces: 2198469W)				$ 116.76
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
35	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
41	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 53.45
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 32.90
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 11.28
47	WP2188756		Cover, Unit   (Replaces: 2171936)				$ 148.75
48	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
49	1119787		Hinge Cover				$ 22.50
52	549193		Clamp-service Cord				$ 14.06
53	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
54	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.90
55	WP489483		Screw   (Replaces: 489483)				$ 11.41

    View Diagram in Separate Window       Print Part List
