SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Bottom


03 - Cabinet Shelving


04 - Compressor Compartment


05 - Control Panel


06 - Divider Block


07 - Evap Area


08 - Fz Door


09 - Ref Door

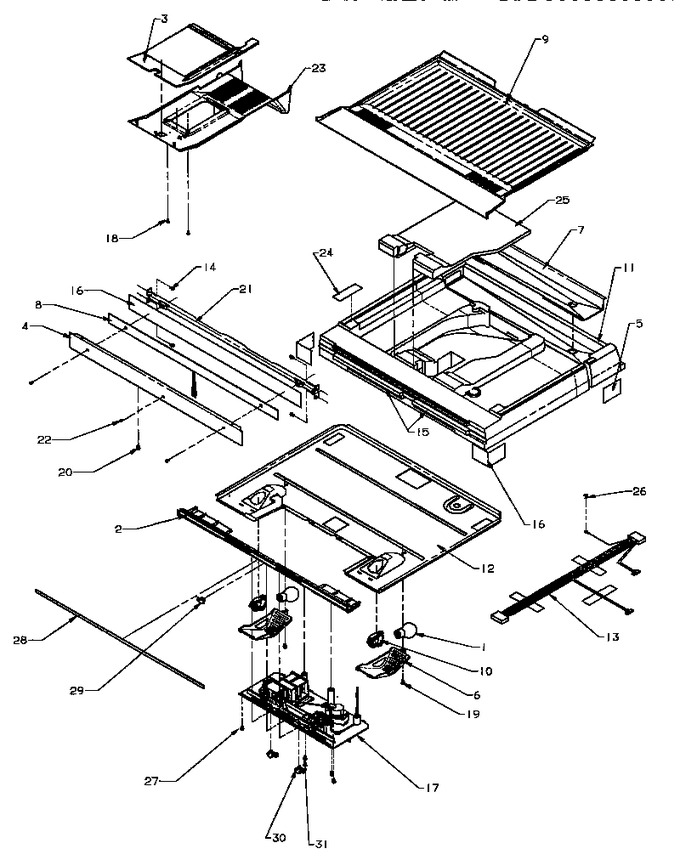

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
2	10435507		Frame, Top Brkr		Appelez-nous	-
3	10779602		Insul. Air Duct		Appelez-nous	-
4	10433358		Mullion, Center(almond)		Appelez-nous	-
5	10685506		Gasket, Sealing		Appelez-nous	-
6	10508701		Shield, Refrig. Light		Appelez-nous	-
7	10435911		Tray, Drip		Appelez-nous	-
8	10543601		Heater Mull.		Appelez-nous	-
9	10430604		Bottom, Frz		Appelez-nous	-
10	D7714406		Socket, Angle		Appelez-nous	-
11	10580202		Block, Drain		Appelez-nous	-
12	10437130		Top, Refrig (e-coat)		Appelez-nous	-
13	10573504		Harness, Mullion		Appelez-nous	-
14	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
15	10772301		Insulation		Appelez-nous	-
16	B0523584		Insulation Per Ft.		Appelez-nous	-
17	Y00000000		See Note Control Assembly -- (see Control Panel Page For Breakdown)		Appelez-nous	-
18	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
19	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
20	M0211520		Screw - Sm		Appelez-nous	-
21	10433607		Plate, Center Tap		Appelez-nous	-
22	M0253916		Screw		Appelez-nous	-
23	10440404		Duct, Frz Air		Appelez-nous	-
24	B5759626		Gasket, Sealing		Appelez-nous	-
25	10476401		Insert-drain Blk		Appelez-nous	-
26	WP489399		Screw   (Replaces: M0232903)				$ 7.30
27	M0211530		Screw		Appelez-nous	-
28	10450819		Membrane, Breaker		Appelez-nous	-
29	10453001		Cap, Switch		Appelez-nous	-
30	10565401		Knob, Control		Appelez-nous	-
31	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38

    View Diagram in Separate Window       Print Part List
