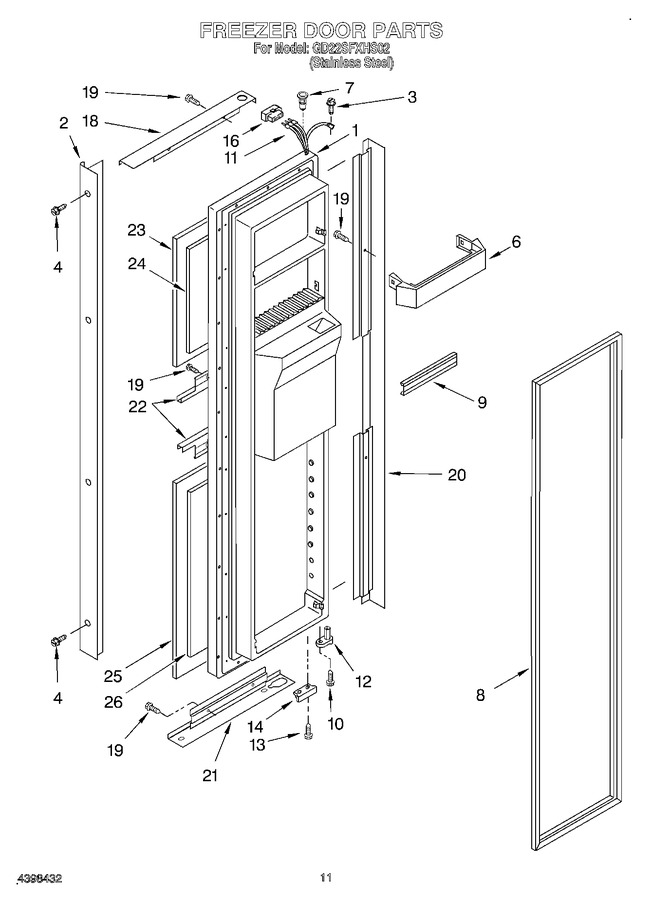

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205653S		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2203818S		Handle		Appelez-nous	-
3	WP489128		Screw   (Replaces: 488500)				$ 11.40
4	3400897		Screw		Appelez-nous	-
6	WP2156021		Trivet, Shelf (4)   (Replaces: 2156021)				$ 66.43
7	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2181892)				$ 325.91
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	2198271		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2195950		Bracket, Door Stop (chrome)				$ 5.84
14	2195952		Bracket, Door Stop (black)		Appelez-nous	-
16	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
18	2203371S		Trim, Door (top)		Appelez-nous	-
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
20	2186764S		Trim, Door (hinge Side)		Appelez-nous	-
21	2203365S		Trim, Door (bottom)		Appelez-nous	-
22	2186777S		Trim, Door (dispenser, Top & Bottom)		Appelez-nous	-
23	2203289S		Panel, Upper		Appelez-nous	-
24	2208274		Filler, Panel (upper)		Appelez-nous	-
25	2203291S		Panel, Lower		Appelez-nous	-
26	2208275		Filler, Panel (lower)		Appelez-nous	-
