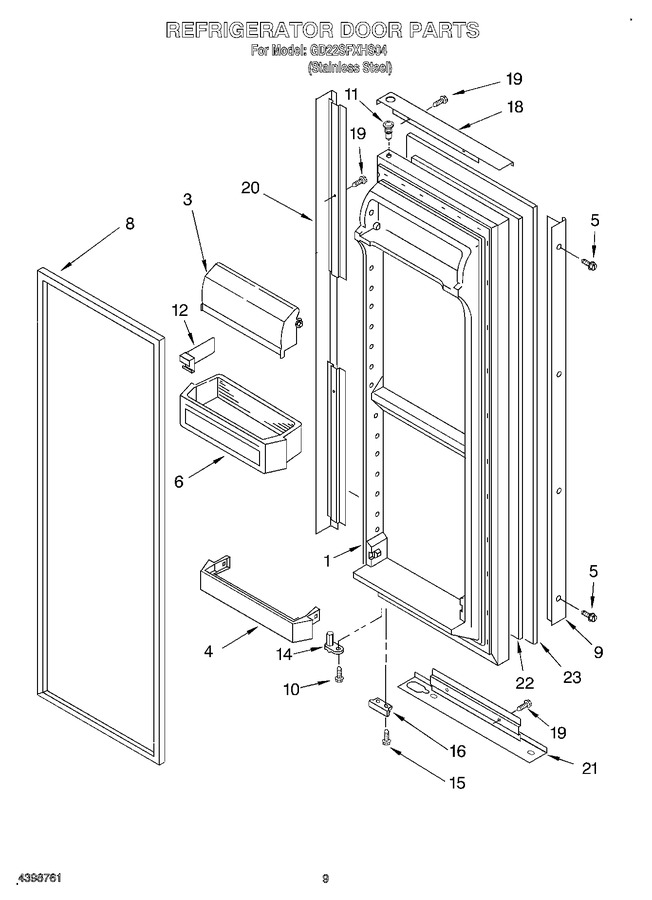

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2203610B		Refrigerator Door (includes Item No.8)		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
5	3400897		Screw		Appelez-nous	-
6	WPW10321304		Shelf Bin (3)   (Replaces: 2179607)			Immediately	$ 44.73
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2181891)				$ 335.58
9	2203815S		Handle		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
12	2195496		Divider, Bin		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2195952		Bracket, Door Stop (black)		Appelez-nous	-
16	2195950		Bracket, Door Stop (chrome)				$ 5.84
18	2203381S		Trim, Door (top)		Appelez-nous	-
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
20	2186764S		Trim, Door (hinge Side)		Appelez-nous	-
21	2203377S		Trim, Door (bottom)		Appelez-nous	-
22	2208276		Filler, Panel		Appelez-nous	-
23	2203293S		Panel		Appelez-nous	-
