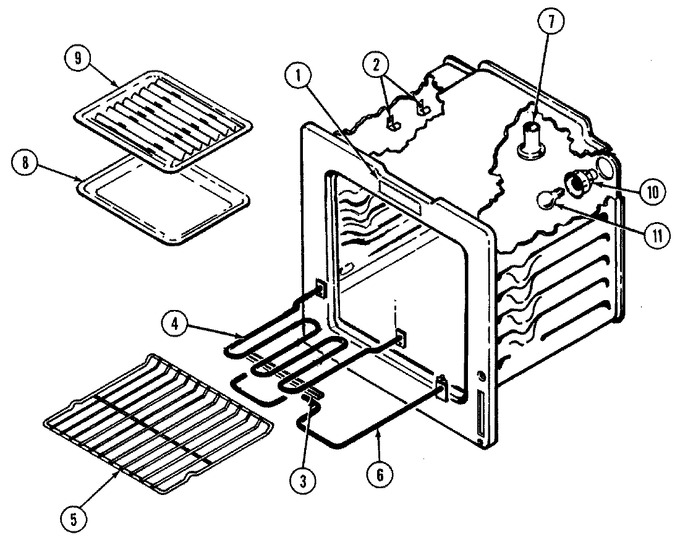

03 - Oven
04 - Top Assy.
05 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8114P335-60 | Cover, Lock Slot | 10 |
|
- | ||||
| 2 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 10 |
|
Immediately | $ 12.92 | |||
| 3 | 3807F389-45 | Support, Element | 10 |
|
- | ||||
| 3 | W11772394 | Screw (Replaces: 7101P345-60) | 10 |
|
Immediately | $ 13.22 | |||
| 4 | Y04000057 | Element, Broil | 10 |
|
$ 94.48 | ||||
| 5 | WPW10282492 | Rack, Oven (Replaces: 7801P047-60) | 10 |
|
Immediately | $ 72.39 | |||
| 6 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 14.72 | |||
| 6 | UB870 | Element, Bake (Replaces: 7406P092-60) | 10 |
|
Immediately | $ 49.95 | |||
| 7 | 8026P019-60 | Tube, Vent | 10 |
|
- | ||||
| 8 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 9 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 10 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 10 |
|
Immediately | $ 73.44 | |||
| 11 | WP67002552 | Lamp, Oven (Replaces: 7407P027-60) | 10 |
|
Immediately | $ 12.34 |
