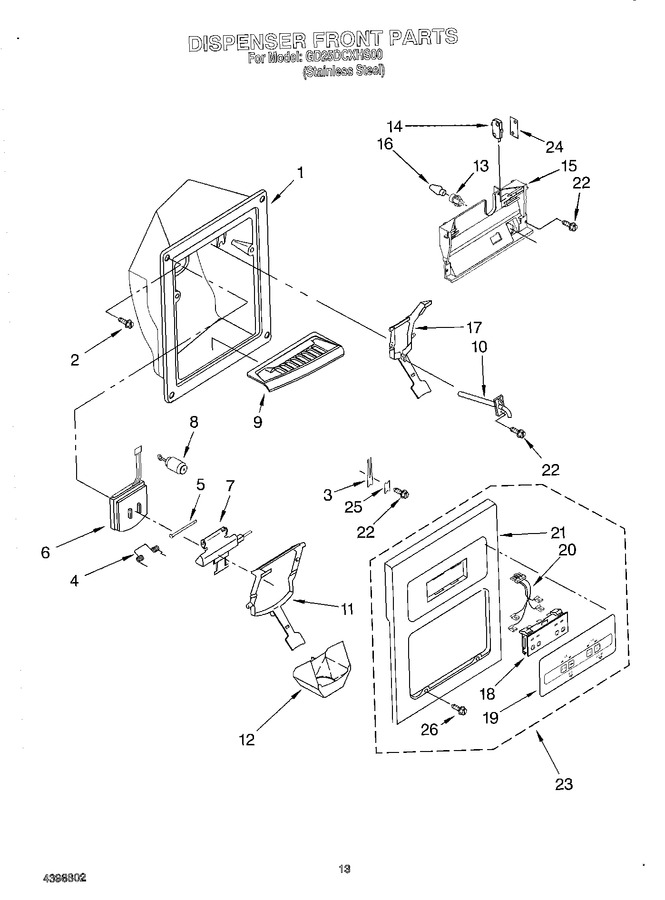

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Housing, Dispenser (not A Serviceable Part) |
|
- | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 12.36 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2180209) |
|
$ 87.40 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 15.31 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180352) |
|
Immediately | $ 26.83 | ||||
| 7 | 2206423 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Delay Mechanism |
|
- | |||||
| 9 | WP2207007B | Grille, Overflow (black) (Replaces: 2207007B) |
|
$ 74.04 | |||||
| 10 | WP4388152 | Water Fitting Assembly (includes Water Tube) (Replaces: 2180225) |
|
$ 290.25 | |||||
| 11 | 2203562B | Lever, Ice Dispenser (black) |
|
$ 85.92 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 30.02 | ||||
| 13 | 2180200 | Lamp Holder |
|
$ 103.59 | |||||
| 14 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 28.71 | ||||
| 15 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 26.97 | ||||
| 16 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 17 | 2203561B | Lever, Water Dispenser (black) |
|
$ 102.50 | |||||
| 18 | WP2180236 | Switch Assembly (also Order No. 19) (Replaces: 2180236) |
|
$ 288.00 | |||||
| 19 | 2207088B | Overlay, Front Cover (black) |
|
- | |||||
| 20 | 2311650 | Wire Assembly (Replaces: 2196199) |
|
$ 94.16 | |||||
| 21 | N/A | Front Cover, Housing (not Available, Order No.23) |
|
- | |||||
| 22 | WP3400906 | Screw (Replaces: 489000) |
|
$ 9.05 | |||||
| 23 | 2207045B | Front Cover Assembly (includes Items 18, 19, 20 & 21) (black) |
|
- | |||||
| 24 | 625834 | Spacer, Switch (2) |
|
$ 7.99 | |||||
| 25 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 12.54 | |||||
| 26 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 8.18 |
