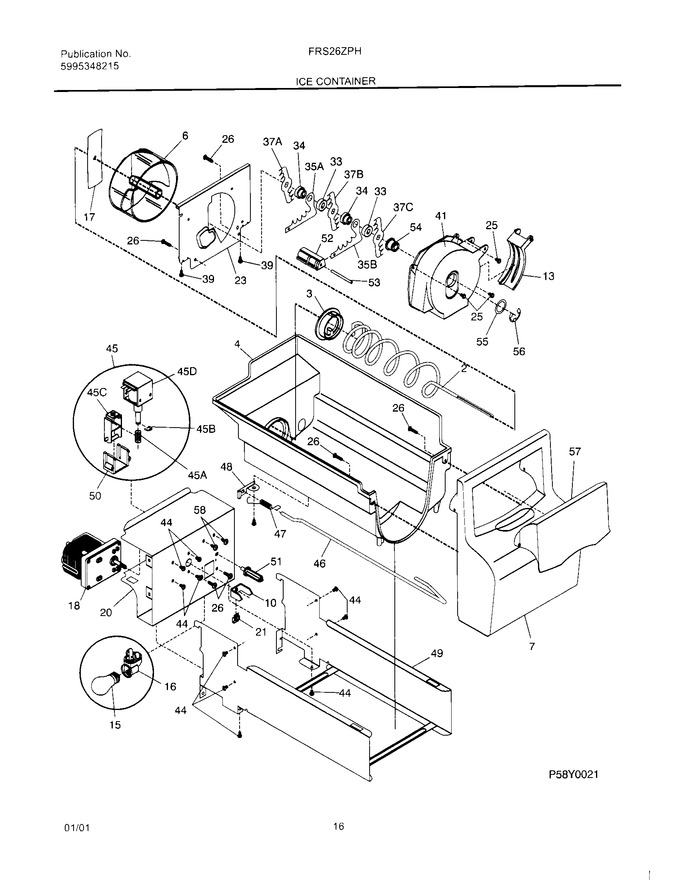

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241716101		Auger-ice   (Replaces: 5304404344)				$ 130.36
3	241685201		Cam-drive   (Replaces: 5304404343)				$ 46.46
4	241734001		Container-ice,bucket Only   (Replaces: 218815300)				$ 117.34
6	241685101		Drum-ice Disp   (Replaces: 5304404346)				$ 57.49
7	241734201		Front-ice Container   (Replaces: 218815400)				$ 96.71
10	241726501		Bar-drive   (Replaces: 5304404337)				$ 65.36
13	241885001		Gate   (Replaces: 5304404359)				$ 84.26
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	241559801		Socket-light/lamp   (Replaces: 5303289050)				$ 80.75
17	241684503		Drive Blade   (Replaces: 5304404345)				$ 19.38
18	218980701		Motor-auger		Appelez-nous	-
20	5304404332		Cover-motor		Appelez-nous	-
21	241726501		Nut-drive   (Replaces: 215285100)				$ 65.36
23	241684001		Plate-front   (Replaces: 5304404347)				$ 166.16
25	240555002		Screw,hex Washer Head ,8-32t X 0.375   (Replaces: 5304404362)			Immediately	$ 14.96
26	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.88
33	241684802		Spacer   (Replaces: 5304404351)				$ 10.11
34	5304404349		Spacer		Appelez-nous	-
35	241684503		Fixed Blade,round   (Replaces: 5304404353)				$ 19.38
35	241684203		Fixed Blade,square   (Replaces: 5304404352)				$ 20.22
37	241684108		Blade,crusher No.2   (Replaces: 5304404350)				$ 24.43
37	241684109		Blade-crusher,no.3   (Replaces: 5304404356)				$ 24.43
37	241684107		Blade,crusher No.1   (Replaces: 5304404348)				$ 24.43
39	241690501		Screw   (Replaces: 5304404365)				$ 18.11
41	241885001		Housing-crusher   (Replaces: 5304404358)				$ 84.26
44	218359200		Screw,pan Head ,8-32 X 0.250		Appelez-nous	-
45	241676001		E-ring-solenoid   (Replaces: 5304406817)				$ 77.96
45	241675704		Solenoid   (Replaces: 5304406819)			Immediately	$ 73.01
45	241676101		Actuator-solenoid   (Replaces: 5304406818)				$ 71.66
45	241675704		Solenoid Assy   (Replaces: 5304404333)			Immediately	$ 73.01
45	241675902		Spring-solenoid   (Replaces: 5304406816)				$ 7.09
46	5304404341		Control Rod		Appelez-nous	-
47	5304404342		Spring-control Rod		Appelez-nous	-
48	241684602		Bracket-control Rod   (Replaces: 5304404340)				$ 118.91
49	241734501		Rail Assy   (Replaces: 5304404329)				$ 205.54
50	241675601		Guide-solenoid   (Replaces: 5304404334)				$ 88.99
51	5304404336		Rotation Stop		Appelez-nous	-
52	241684901		Spacer-fixed Blades   (Replaces: 5304404354)				$ 31.50
53	241690402		Pin-spiral,fixed Blades   (Replaces: 5304404355)				$ 21.26
54	241685001		Nut-auger   (Replaces: 5304404357)				$ 22.05
55	5304404360		Washer		Appelez-nous	-
56	241690201		E-ring   (Replaces: 5304404361)				$ 21.26
57	241734101		Door-access   (Replaces: 5304404363)				$ 56.23
58	5304404331		Screw-solenoid		Appelez-nous	-
NI	5308002748		Screw		Appelez-nous	-
NI	5304404364		Screw-bracket				$ 15.59
NI	241860803		Ice Container Assy,w/moving Parts   (Replaces: 218842802)			Immediately	$ 225.21
NI	5304404335		Wiring Harness,auger Motor				$ 100.28
