| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
67004162 |
|
Shelf, Crisper Topx |
10 |
Appelez-nous
|
- |
|
|
|
| 2 |
67004576 |
|
Frame, Crisper Shelf |
10 |
Appelez-nous
|
- |
|
|
|
| 3 |
67004076 |
|
Glass, Crisper Shelf |
10 |
Appelez-nous
|
- |
|
|
|
| 4 |
67004163 |
|
Frame, Meat Shelf |
10 |
Appelez-nous
|
- |
|
|
|
| 5 |
67004164 |
|
Glass, Meat Shelf |
10 |
Appelez-nous
|
- |
|
|
|
| 6 |
67005810 |
|
Pan, Sm Crisper |
11 |
Appelez-nous
|
- |
|
|
|
| 6 |
67005017 |
|
Pan, Sm Crisper |
10 |
Appelez-nous
|
- |
|
|
|
| 7 |
67005811 |
|
Pan, Lg Crisper |
11 |
Appelez-nous
|
- |
|
|
|
| 7 |
67005018 |
|
Pan, Lg Crisper X |
10 |
Appelez-nous
|
- |
|
|
|
| 8 |
67004580 |
|
Pan, Meat |
10 |
Appelez-nous
|
- |
|
|
|
| 8 |
67005814 |
|
Pan, Meat |
11 |
Appelez-nous
|
- |
|
|
|
| 9 |
67004489 |
|
Glide, Crisper Frame |
10 |
Appelez-nous
|
- |
|
|
|
| 9 |
67005620 |
|
Glide, Crisp Frame (w/bumper) |
11 |
|
|
$ 321.73 |
|
|
| 9 |
M0213129 |
|
Screw |
10 |
Appelez-nous
|
- |
|
|
|
| 10 |
WP12603701 |
 |
Support, Crisper Frame (Replaces: 12603701) |
10 |
|
|
$ 10.83 |
|
|
| 11 |
67004168 |
|
Slide, Control |
10 |
Appelez-nous
|
- |
|
|
|
| 12 |
M0213129 |
|
Screw |
10 |
Appelez-nous
|
- |
|
|
|
| 12 |
67005898 |
 |
Glide, Meat Frame (w/bumper) |
11 |
|
|
$ 39.39 |
|
|
| 12 |
67005620 |
|
Glide, Meat Frame (Replaces: 67004488) |
10 |
|
|
$ 321.73 |
|
|
| 13 |
67004170 |
|
Pillar (lt) |
10 |
Appelez-nous
|
- |
|
|
|
| 14 |
67004171 |
|
Pillar (rt) |
10 |
Appelez-nous
|
- |
|
|
|
| 15 |
67004172 |
|
Seal, Crisper Frame (frt) |
10 |
Appelez-nous
|
- |
|
|
|
| 16 |
67004173 |
|
Seal, Crisper Frame (rear) |
10 |
Appelez-nous
|
- |
|
|
|
| 17 |
67004176 |
|
Slide, Temp. Control |
10 |
Appelez-nous
|
- |
|
|
|
| 18 |
67004177 |
|
Gasket, Temp. Control |
10 |
Appelez-nous
|
- |
|
|
|
| 19 |
67004175 |
|
Housing, Temp. Control |
10 |
Appelez-nous
|
- |
|
|
|

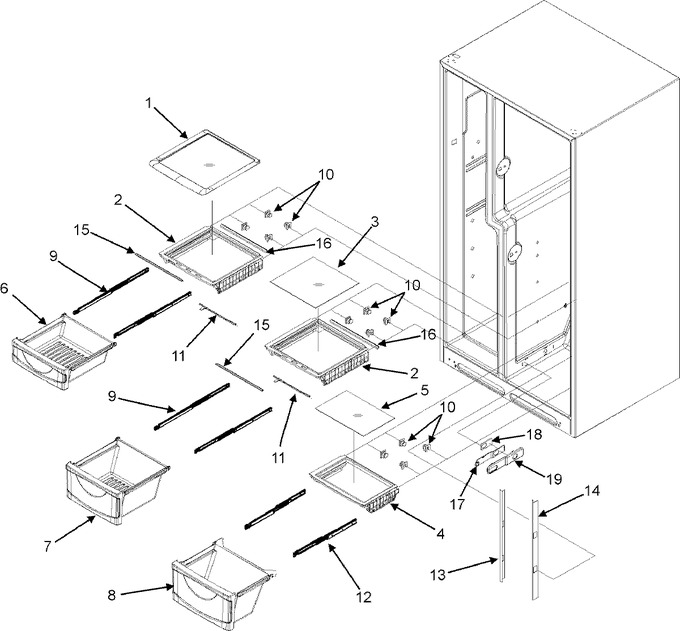

View Diagram in Separate Window
