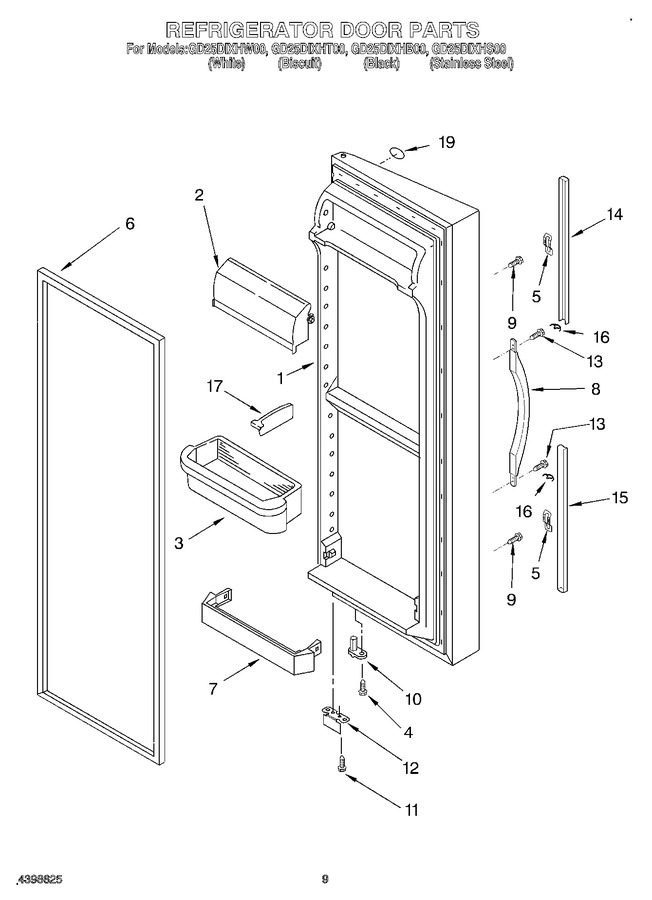

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2207026T | Refrigerator Door (includes Item No.6) (biscuit) |
|
- | |||||
| 1 | 2207026B | Refrigerator Door (includes Item No.6) (black) |
|
- | |||||
| 1 | 2207026S | Refrigerator Door (includes Item No.6) (stainless) |
|
- | |||||
| 1 | 2207026W | Refrigerator Door (includes Item No.6) (white) |
|
- | |||||
| 2 | WP2256101 | Compartment Door (Replaces: 2177105) |
|
Immediately | $ 85.16 | ||||
| 3 | WPW10321304 | Shelf Bin (3) (Replaces: 2179607) |
|
Immediately | $ 44.73 | ||||
| 4 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 5 | WP2195327 | Clip (Replaces: 2195327) |
|
$ 7.40 | |||||
| 6 | 2159083 | Door Gasket, Magnetic (service) (black) |
|
$ 251.49 | |||||
| 6 | 2159075 | Door Gasket, Magnetic (service) (mist Beige) |
|
Immediately | $ 317.14 | ||||
| 7 | WP2156022 | Shelf Bin (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 8 | 2207003TG | Handle (tempest Gray) |
|
- | |||||
| 8 | 2207003B | Handle (black) |
|
- | |||||
| 8 | 2207003T | Handle (biscuit) |
|
- | |||||
| 8 | 2207003W | Handle (white) |
|
- | |||||
| 9 | WP3400852 | Screw (4) (Replaces: 3400852) |
|
$ 9.84 | |||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 12 | 2200082 | Bracket, Door Stop |
|
$ 5.83 | |||||
| 13 | WP489491 | Screw (4) (Replaces: 489491) |
|
$ 6.95 | |||||
| 14 | 2207037T | Trim, Door-top (biscuit) |
|
- | |||||
| 14 | 2207037TG | Trim, Door-top (tempest Gray) |
|
- | |||||
| 14 | 2207037B | Trim, Door-top (black) |
|
- | |||||
| 14 | 2207037W | Trim, Door-top (white) |
|
- | |||||
| 15 | 2207038T | Trim, Door-bottom (biscuit) |
|
- | |||||
| 15 | 2207038W | Trim, Door-bottom (white) |
|
- | |||||
| 15 | 2207038TG | Trim, Door-bottom (tempest Gray) |
|
- | |||||
| 15 | 2207038B | Trim, Door-bottom (black) |
|
- | |||||
| 16 | 2207010S | Jewelry, Handle (satin Nickel) |
|
- | |||||
| 16 | 2207010G | Jewelry, Handle (gold) |
|
- | |||||
| 17 | 2195496 | Divider |
|
- | |||||
| 19 | WP2213265 | Nameplate (tempest Gray) (Replaces: 2207087TG) |
|
Immediately | $ 88.74 | ||||
| 19 | WP2213265 | Nameplate (white) (Replaces: 2207087W) |
|
Immediately | $ 88.74 | ||||
| 19 | WP2213265 | Nameplate (biscuit) (Replaces: 2207087T) |
|
Immediately | $ 88.74 | ||||
| 19 | WP2213265 | Nameplate (black) (Replaces: 2207087B) |
|
Immediately | $ 88.74 |
