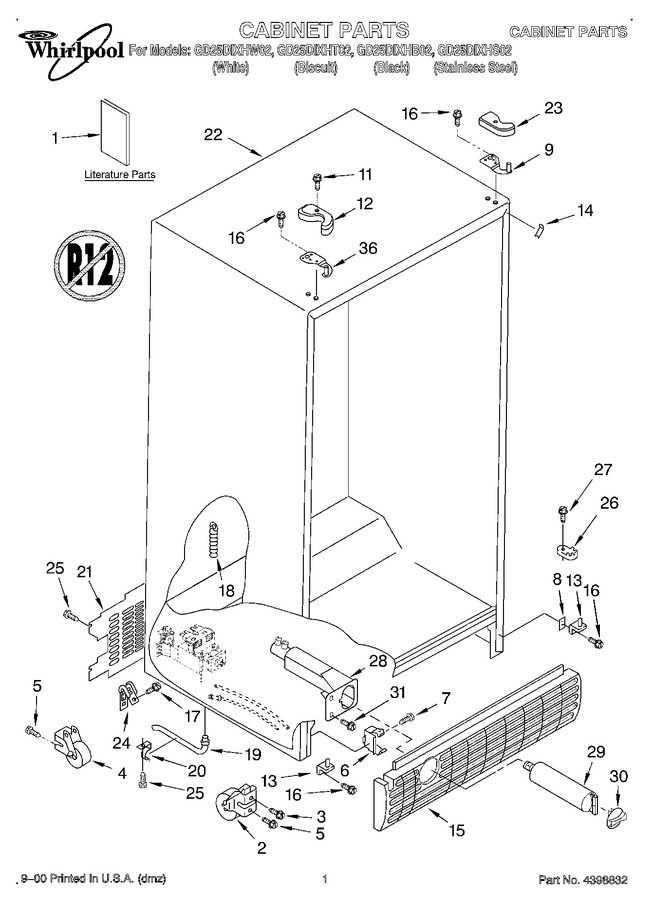

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2198693		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	LIT2211859		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT2205958		Literature Parts (owner`s Manual)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	WP2181911		Shim (1)   (Replaces: 2156056)				$ 33.21
8	2209697		Shim (1)				$ 41.25
9	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
11	WP489128		Screw   (Replaces: 488500)				$ 10.88
12	WP2203407B		Hinge Cover (black)   (Replaces: 2203407B)				$ 19.52
12	WP2203407W		Hinge Cover (white)   (Replaces: 2203407W)				$ 20.75
12	2203407T		Hinge Cover (biscuit)		Appelez-nous	-
13	8201707		Hinge Bottom (2)   (Replaces: 2171851)				$ 88.90
14	2196097		Filler, Wrapper (black)		Appelez-nous	-
14	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
14	2196094		Filler, Wrapper (white)		Appelez-nous	-
15	W10803964		Grille (white)   (Replaces: 2198468W)				$ 127.70
15	W10803964		Grille (black)   (Replaces: 2198468B)				$ 127.70
15	2198468T		Grille (biscuit)		Appelez-nous	-
16	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
18	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 50.90
19	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
21	WP2188755		Cover, Unit   (Replaces: 2204203)				$ 135.91
22	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
23	WP2203408B		Hinge Cover (black)   (Replaces: 2203408B)				$ 18.63
23	2203408T		Hinge Cover (biscuit)		Appelez-nous	-
23	WP2203408W		Hinge Cover (white)   (Replaces: 2203408W)				$ 20.97
24	549193		Clamp-service Cord				$ 13.39
25	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
26	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
27	WP489483		Screw   (Replaces: 489483)				$ 10.87
28	WP2186443		Housing, Water Filter   (Replaces: 2186443)			Immediately	$ 97.35
29	EDR5RXD1B		Filter, Water   (Replaces: 2203220)			Immediately	$ 49.99
30	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186494W)				$ 55.72
30	WP2186494T		Cap, Water Filter (biscuit)   (Replaces: 2186494T)				$ 11.88
30	WP2186494B		Cap, Water Filter (black)   (Replaces: 2186494B)			Immediately	$ 53.20
31	WP489500		Screw   (Replaces: 489500)				$ 7.78
36	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
	LIT787808		Refrigerator		Appelez-nous	-
	LIT787316		Icemaker		Appelez-nous	-
