SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

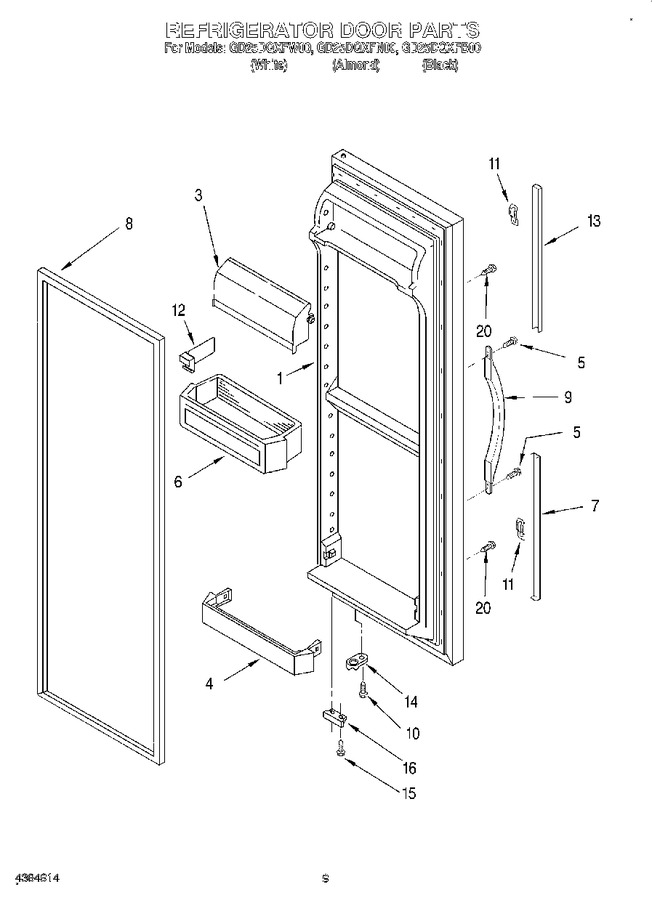

1	2194509N		Refrigerator Door (includes Item No.8) (almond)		Appelez-nous	-
1	2194509B		Refrigerator Door (includes Item No.8) (black)		Appelez-nous	-
1	2194509W		Refrigerator Door (includes Item No.8) (white)		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 85.16
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
5	WP489491		Screw   (Replaces: 489491)				$ 6.95
6	WPW10321304		Shelf Bin (3)   (Replaces: 2179607)			Immediately	$ 44.73
7	2194970N		Extension, Bottom (almond)		Appelez-nous	-
7	WP2194969B		Extension, Bottom (black)   (Replaces: 2194970B)				$ 116.40
7	2194970W		Extension, Bottom (white)		Appelez-nous	-
8	2159075		Door Gasket, Magnetic (service) (mist Beige)			Immediately	$ 317.14
8	2159083		Door Gasket, Magnetic (service) (black)				$ 251.49
9	2193345N		Handle, Center (almond)		Appelez-nous	-
9	2193345W		Handle, Center (white)		Appelez-nous	-
9	2193345B		Handle, Center (black)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.40
12	2195496		Divider, Bin		Appelez-nous	-
13	2194974B		Extension, Top (black)		Appelez-nous	-
13	2194974N		Extension, Top (almond)		Appelez-nous	-
13	2194974W		Extension, Top (white)		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 27.36
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	2195952		Bracket, Door Stop (black)		Appelez-nous	-
16	2195950		Bracket, Door Stop (chrome)				$ 5.84
20	WP3400852		Screw   (Replaces: 3400852)				$ 9.84

    View Diagram in Separate Window       Print Part List
