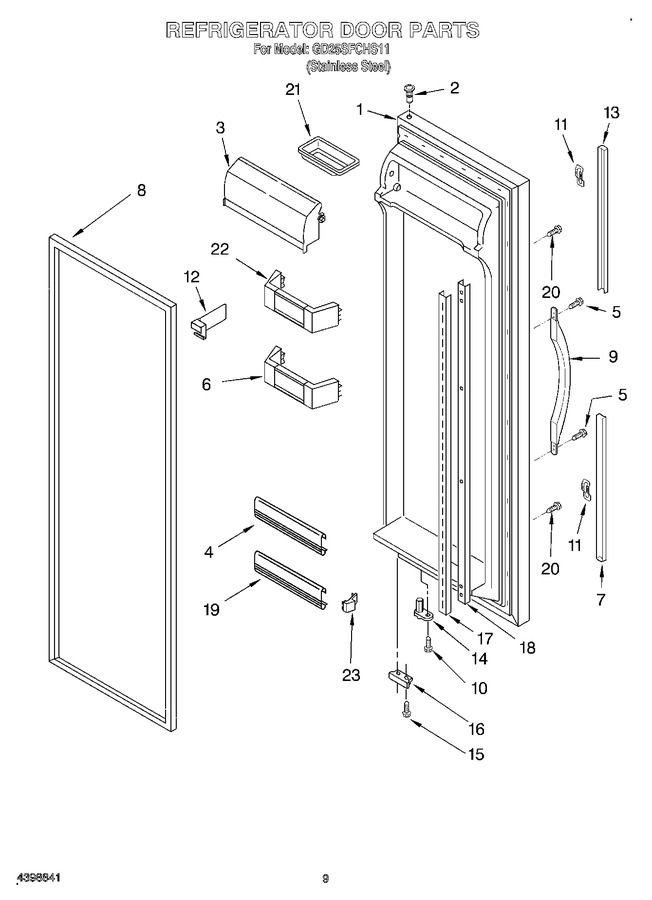

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2208131S		Refrigerator Door (includes Item No.8)		Appelez-nous	-
2	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	2182190		Trim, Door Shelf		Appelez-nous	-
5	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	2199986		Bin, Door		Appelez-nous	-
7	2203086B		Extension, Bottom (black)		Appelez-nous	-
8	2209515		Door Gasket, Magnetic (service) (black)				$ 226.26
9	2186649B		Handle, Center (black)				$ 72.96
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
12	2195497		Divider, Bin		Appelez-nous	-
13	2203085B		Extension, Top (black)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2195952		Bracket, Door Stop		Appelez-nous	-
17	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
18	1113949		Ladder, Shelf (2)		Appelez-nous	-
19	2203087		Trim, Door Shelf				$ 42.91
20	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
21	2165792		Tray, Butter		Appelez-nous	-
22	2199983		Bin, Door (3)		Appelez-nous	-
23	WP2195916K		Endcap (2)   (Replaces: 2195916)			Immediately	$ 13.18
