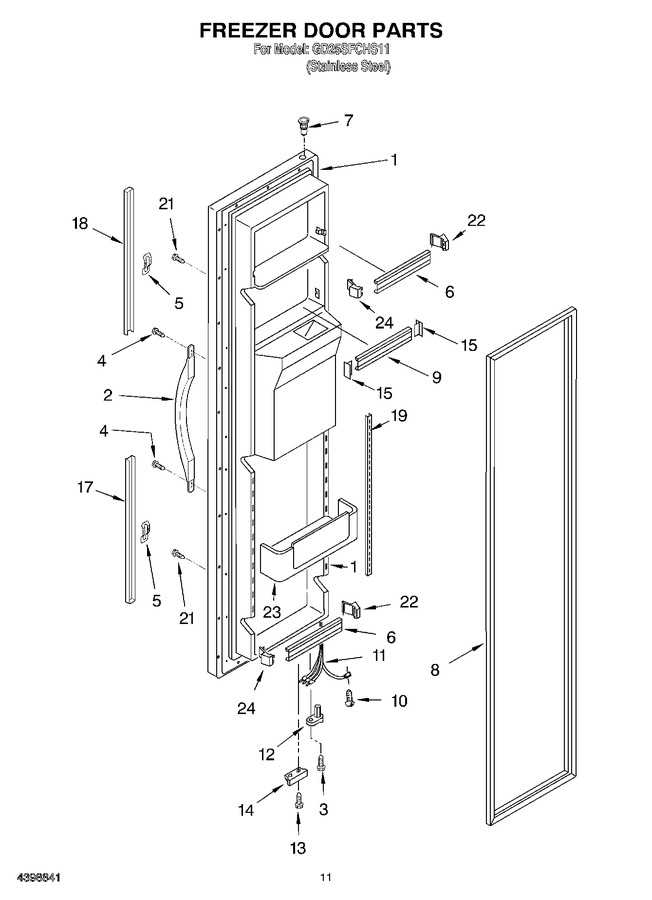

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2208135S		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2186649B		Handle, Center (black)				$ 72.96
3	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
6	2199990		Trim, Door Shelf		Appelez-nous	-
7	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
8	2209514		Door Gasket, Magnetic (service) (black)		Appelez-nous	-
9	2199991		Trim, Door Shelf		Appelez-nous	-
10	3369138		Screw				$ 5.81
11	2203170		Wiring Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2195952		Bracket, Door Stop		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
17	2203086B		Extension, Bottom (black)		Appelez-nous	-
18	2203085B		Extension, Top (black)		Appelez-nous	-
19	2208147		Ladder, Shelf Assembly (2)		Appelez-nous	-
21	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
22	WP2195916K		Trim, End Cap (4)   (Replaces: 2195916)			Immediately	$ 13.18
23	2199992		Bin, Door (2)		Appelez-nous	-
24	2195917		Endcap (left)		Appelez-nous	-
