SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker

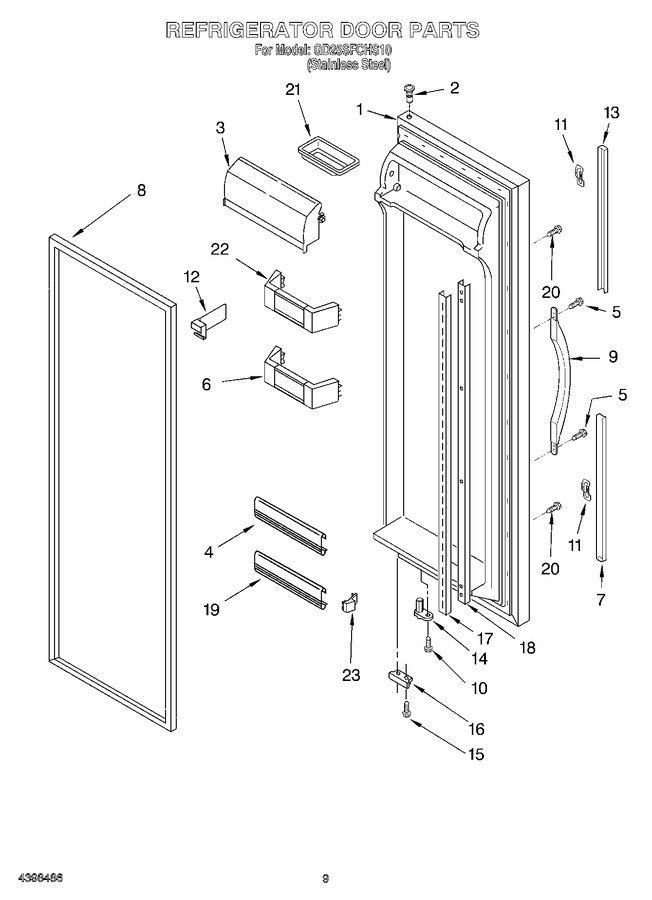

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2208131S		Refrigerator Door (includes Item No.8)		Appelez-nous	-
2	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 85.16
4	2182190		Trim, Door Shelf		Appelez-nous	-
5	WP489491		Screw   (Replaces: 489491)				$ 6.95
6	2199986		Bin, Door		Appelez-nous	-
7	2203047B		Extension, Bottom (black)		Appelez-nous	-
8	2209515		Door Gasket, Magnetic (service) (black)				$ 226.26
9	2186649B		Handle, Center (black)				$ 72.96
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.40
12	2195497		Divider, Bin		Appelez-nous	-
13	2203046B		Extension, Top (black)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	2195952		Bracket, Door Stop		Appelez-nous	-
17	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
18	1113949		Ladder, Shelf (2)		Appelez-nous	-
19	2203087		Trim, Door Shelf				$ 42.91
20	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
21	2165792		Tray, Butter		Appelez-nous	-
22	2199983		Bin, Door (3)		Appelez-nous	-
23	WP2195916K		Endcap (2)   (Replaces: 2195916)			Immediately	$ 12.55
