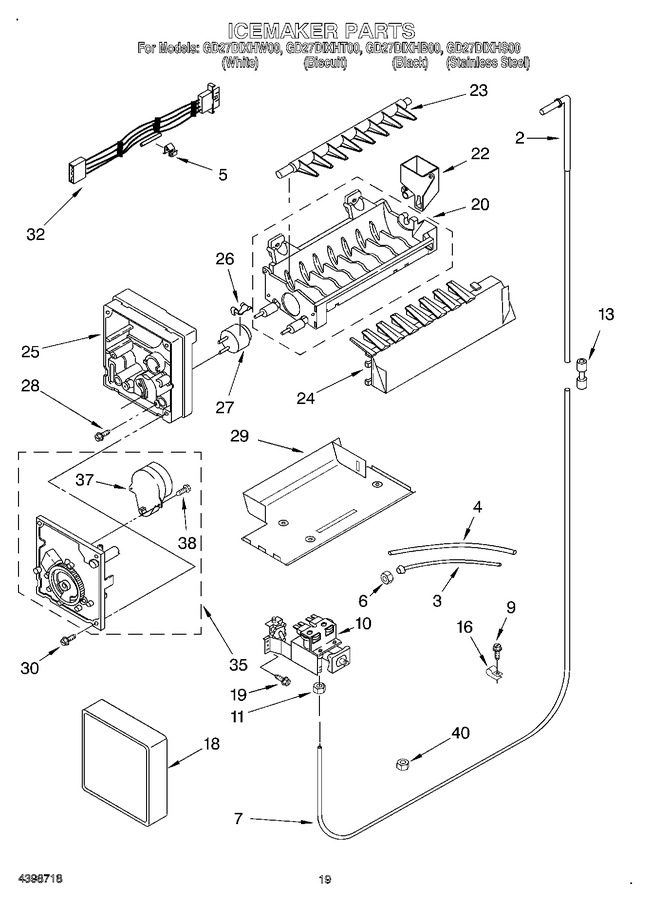

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP2256096		Fitting, Water Tube   (Replaces: 2198578)			Immediately	$ 203.86
3	W11496481		Tube, Filter Outlet   (Replaces: 2186493)			Immediately	$ 35.42
4	8201597		Tube, Filter Inlet   (Replaces: 2186492)			Immediately	$ 77.02
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
6	2200083		Nut, Compression		Appelez-nous	-
7	WP2256096		Tube, Water   (Replaces: 2211507)			Immediately	$ 203.86
9	WP489478		Screw   (Replaces: 489478)				$ 7.75
10	W10408179		Valve, Solenoid   (Replaces: 2205762)			Immediately	$ 96.38
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.97
13	WP2198677		Connector, Water Tube   (Replaces: 2198677)			Immediately	$ 27.76
16	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.18
18	WPW10289690		Cover   (Replaces: 2174358)			Immediately	$ 8.40
19	WPW10141625		Screw   (Replaces: 488649)				$ 21.16
20	WPW10190929		Mold & Heater Assembly (also Order   (Replaces: 628228)				$ 233.15
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.18
22	WP628356		Bearing & Inlet   (Replaces: 628356)				$ 51.19
23	WP627843		Ejector   (Replaces: 2194711)				$ 83.60
24	W10297244		Ice Stripper   (Replaces: 2198598)				$ 73.14
25	WP2195914		Support   (Replaces: 2194712)				$ 104.57
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.05
27	542369		Cement Alumilastic)		Appelez-nous	-
27	WP627985		Thermostat (also Order)   (Replaces: 628397)				$ 109.18
28	8533917		Screw   (Replaces: 489322)				$ 13.37
29	WP2212322		Bracket, Ice Maker Mounting   (Replaces: 2198638)			Immediately	$ 107.08
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
32	2198599		Harness, Wiring		Appelez-nous	-
35	W10190935		Module Assembly (includes Items 37 & 38)   (Replaces: 628399)			Immediately	$ 110.07
37	W10190935		Motor   (Replaces: 628398)			Immediately	$ 110.07
38	489136		Screw				$ 10.29
40	8171358		Enamel, Graphite		Appelez-nous	-
40	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
40	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
40	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
40	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
40	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
40	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
40	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
40	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
40	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
40	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
40	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
40	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
40	1117510		Torx Key				$ 5.84
40	1129179		Nut, Compression		Appelez-nous	-
40	350942		Primer White (13 Oz. Spray Can)				$ 89.66
40	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
40	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
40	8171357		Enamel, Graphite (13 Oz. Spray Can)				$ 82.31
40	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 26.45
40	80051		Brush Touch-up Kit (graphite)				$ 7.64
40	4210463RW		Coil Brush   (Replaces: 8129)			Immediately	$ 29.82
40	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
40	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
40	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
40	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
40	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
40	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
40	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
40	833938		Kit, Terminal Connector				$ 8.07
40	2198648		Ice Container- Crusher Assembly		Appelez-nous	-
