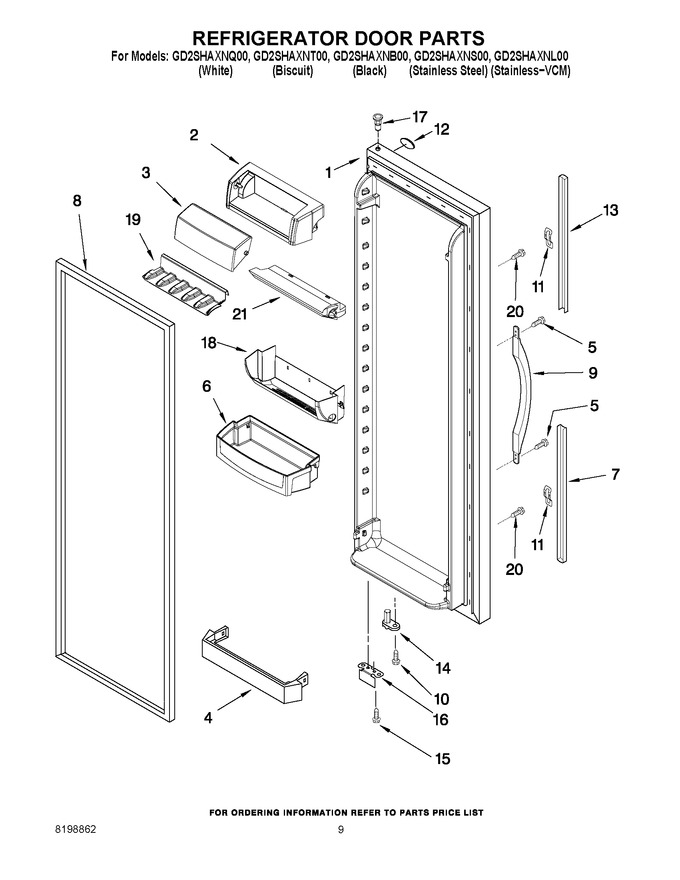

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2255500W | Refrigerator Door (includes Item No.8) (white) |
|
- | |||||
| 1 | 2255500T | Refrigerator Door (includes Item No.8) (biscuit) |
|
- | |||||
| 1 | 2255500L | Refrigerator Door (includes Item No.8) (stainless-vcm) |
|
- | |||||
| 1 | 2255500S | Refrigerator Door (includes Item No.8) (stainless Steel) |
|
- | |||||
| 1 | 2255500B | Refrigerator Door (includes Item No.8) (black) |
|
- | |||||
| 2 | 2255420 | Door Compartment |
|
$ 49.86 | |||||
| 3 | 2255421 | Dairy Door |
|
$ 34.76 | |||||
| 4 | WP2318736 | Trivet, Shelf (Replaces: 2223727) |
|
$ 73.28 | |||||
| 5 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.95 | |||||
| 6 | 2223239 | Door Bin (2) |
|
- | |||||
| 7 | 2194969T | Extension, Bottom (biscuit) |
|
- | |||||
| 7 | WP2194969B | Extension, Bottom (black) (Replaces: 2194969B) |
|
$ 116.40 | |||||
| 7 | 2194969W | Extension, Bottom (white) |
|
$ 5.51 | |||||
| 8 | 2159081 | Door Gasket, Magnetic (black) (Replaces: 2221311) |
|
$ 319.60 | |||||
| 8 | 2159073 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221300) |
|
$ 317.32 | |||||
| 9 | 2186649W | Handle, Center (white) |
|
$ 70.49 | |||||
| 9 | 2186649B | Handle, Center (black) |
|
$ 72.96 | |||||
| 9 | 2186649T | Handle, Center (biscuit) |
|
- | |||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 11 | WP2195327 | Clip (2) (Replaces: 2195327) |
|
$ 7.40 | |||||
| 12 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 13 | 2194971W | Extension, Top (white) |
|
$ 44.85 | |||||
| 13 | WP2194971B | Extension, Top (black) (Replaces: 2194971B) |
|
$ 106.63 | |||||
| 13 | 2194971T | Extension, Top (biscuit) |
|
- | |||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 15 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 16 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 40.03 | |||||
| 16 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 40.03 | |||||
| 17 | WP2182181 | Thimble, Top (Replaces: 2182180) |
|
$ 7.76 | |||||
| 18 | 2255422 | Frame, Can Rack |
|
$ 70.07 | |||||
| 19 | 2255423 | Floor, Can Rack |
|
- | |||||
| 20 | WP3400852 | Screw (Replaces: 3400852) |
|
$ 9.84 | |||||
| 21 | 2255424 | Air Diffuser Asm |
|
- |
