Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2206716W Refrigerator Door (includes Item No.8) (white) Appelez-nous -
1 2206716T Refrigerator Door (includes Item No.8) (biscuit) Appelez-nous -
1 2206716B Refrigerator Door (includes Item No.8) (black) Appelez-nous -
3 WP2256101 Door, Compartment   (Replaces: 2177105) In-Stock Immediately $ 85.16

4 WP2156022 Trivet, Shelf   (Replaces: 2156022) In-Stock Immediately $ 72.80

5 WP489491 Screw   (Replaces: 489491) Special Order $ 6.95

6 WPW10321304 Shelf Bin (3)   (Replaces: 2179607) In-Stock Immediately $ 44.73

7 2194969T Trim, Door-bottom (biscuit) Appelez-nous -
7 2194969W Trim, Door-bottom (white) Special Order $ 5.51

7 WP2194969B Trim, Door-bottom (black)   (Replaces: 2194969B) Special Order $ 116.40

8 2159073 Door Gasket, Magnetic (mist Beige)   (Replaces: 2221300) Special Order $ 317.32

8 2159081 Door Gasket, Magnetic (black)   (Replaces: 2221311) Special Order $ 319.60

9 2186649W Handle (white) Special Order $ 70.49

9 2186649B Handle (black) Special Order $ 72.96

9 2186649T Handle (biscuit) Appelez-nous -
10 WP3400012 Screw   (Replaces: 3400012) Special Order $ 7.82

11 WP2195327 Clip (4)   (Replaces: 2195327) Special Order $ 7.40

12 2220214 Nameplate Special Order $ 32.43

13 WP2194971B Trim, Door-top (black)   (Replaces: 2194971B) Special Order $ 106.63

13 2194971T Trim, Door-top (biscuit) Appelez-nous -
13 2194971W Trim, Door-top (white) Special Order $ 44.85

14 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 6.39

15 WP489483 Screw   (Replaces: 489420) Special Order $ 10.87

16 WP3400852 Bracket, Door Stop (screw)   (Replaces: 3400852) Special Order $ 9.84

16 WP2206629B Bracket, Door Stop (chrome)   (Replaces: 2206629) Special Order $ 40.03

16 WP2206629B Bracket, Door Stop (black)   (Replaces: 2206629B) Special Order $ 40.03


    View Diagram in Separate Window     Print Icon   Print Part List

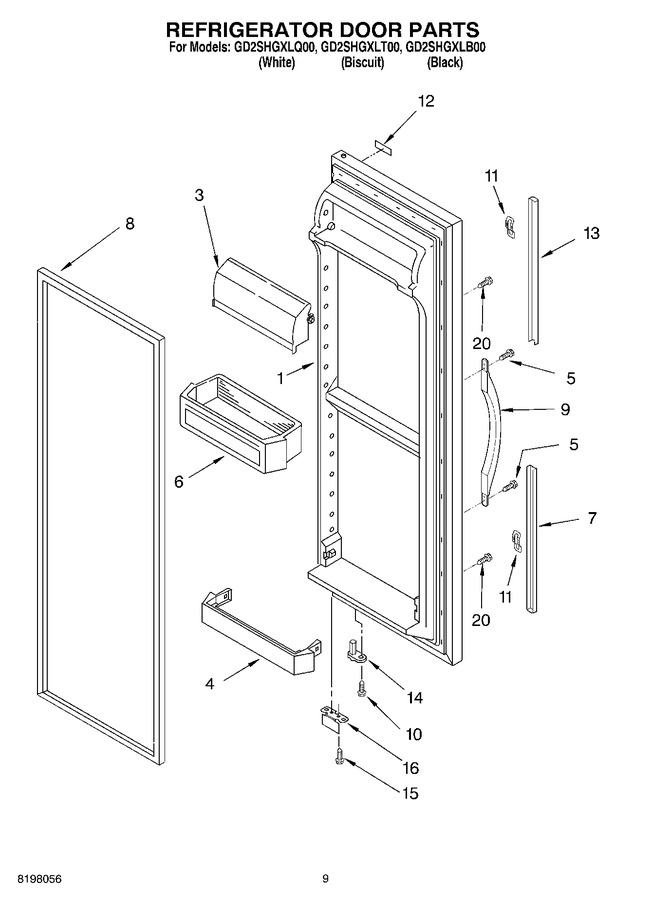

Diagram for GD2SHGXLT00
