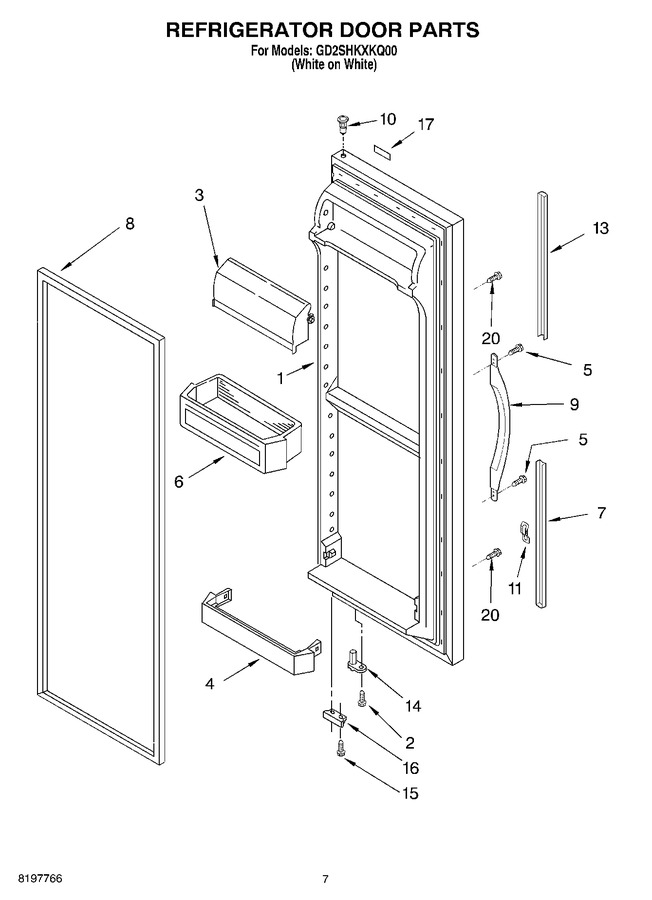

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2206716W | Refrigerator Door (includes Item No.8) |
|
- | |||||
| 2 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2177105) |
|
Immediately | $ 89.42 | ||||
| 4 | WP2156022 | Trivet, Shelf (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 5 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 6 | WPW10321304 | Shelf Bin (3) (Replaces: 2179607) |
|
Immediately | $ 44.73 | ||||
| 7 | 2194969W | Extension, Bottom |
|
$ 5.51 | |||||
| 8 | 2159073 | Door Gasket, Magnetic (service) (mist Beige) (Replaces: 2196239) |
|
$ 333.19 | |||||
| 9 | 2186649W | Handle, Center |
|
$ 70.49 | |||||
| 10 | WP2182181 | Thimble, Top (Replaces: 2182180) |
|
$ 8.15 | |||||
| 11 | WP2195327 | Clip (4) (Replaces: 2195327) |
|
$ 7.77 | |||||
| 13 | 2194971W | Extension, Top |
|
$ 44.85 | |||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 15 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 16 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 42.79 | |||||
| 17 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 20 | WP3400852 | Screw (Replaces: 3400852) |
|
$ 10.33 |
