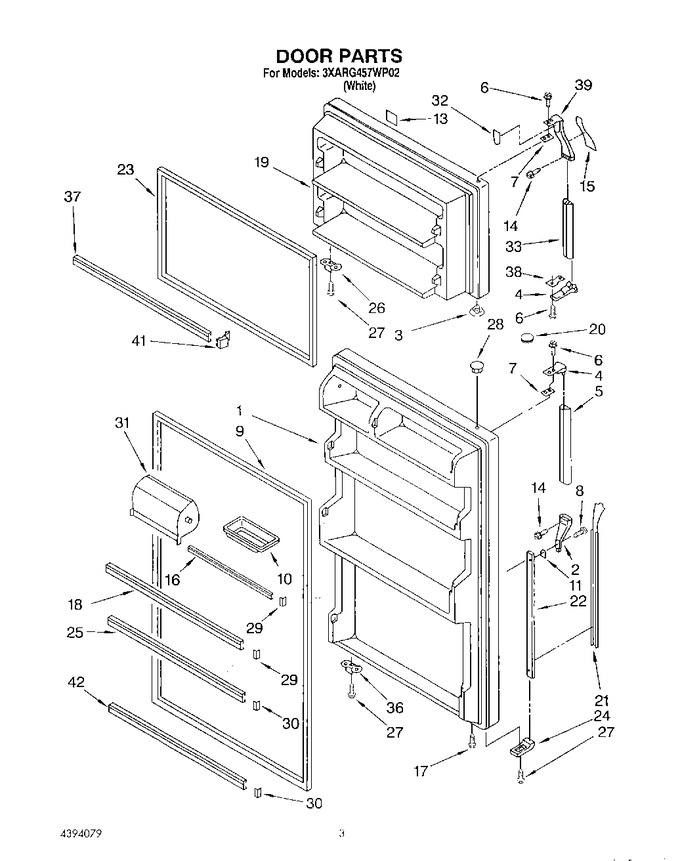

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171269		Refrigerator Door (includes Item 9) (white)		Appelez-nous	-
2	1109189		Handle End, Side		Appelez-nous	-
3	534927		Hole Plug (2) (white)		Appelez-nous	-
4	944157		End Cap, Handle		Appelez-nous	-
5	2150150		Handle, Center (white)		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.98
7	943188		Spacer				$ 7.80
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
9	2159057		Door Gasket, Magnetic (service) (mist Beige)			Immediately	$ 164.66
10	1125936		Butter, Tray		Appelez-nous	-
11	935075		Shim, Handle End (side)		Appelez-nous	-
13	2165148		Nameplate		Appelez-nous	-
14	489022		Screw		Appelez-nous	-
15	1108828		Insert, Handle (white)		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2171040)				$ 124.32
17	WP8281206		Screw   (Replaces: 489028)				$ 8.37
18	WP2201061		Trim, Door   (Replaces: 2171142)				$ 124.32
19	2159446		Freezer Door (includes Item 23) (white)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 1122653)			Immediately	$ 7.77
21	2166438		Insert, Handle (white)		Appelez-nous	-
22	2159417		Retainer, Insert		Appelez-nous	-
23	2159056		Door Gasket, Magnetic (service) (mist Beige)		Appelez-nous	-
24	1105804		Endcap, Insert Retainer		Appelez-nous	-
25	2171140		Trim, Door Shelf		Appelez-nous	-
26	2159367		Bracket, Door Stop		Appelez-nous	-
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
29	WP2156007		Plug-trim (4)   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim (4)   (Replaces: 2156006)			Immediately	$ 12.79
31	WP2218113		Door, Compartment   (Replaces: 2171036)			Immediately	$ 50.33
32	935074		Shim		Appelez-nous	-
33	2166437		Handle, F.c. (white)		Appelez-nous	-
36	2159368		Bracket, Door Stop		Appelez-nous	-
37	WP2201061		Trim-door (2)   (Replaces: 2166861)				$ 124.32
38	943187		Shim				$ 25.14
39	944163		Handle End, Top				$ 53.54
41	WP2156003		Endcap (4)   (Replaces: 2156003)			Immediately	$ 13.25
42	2184570		Trim, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
