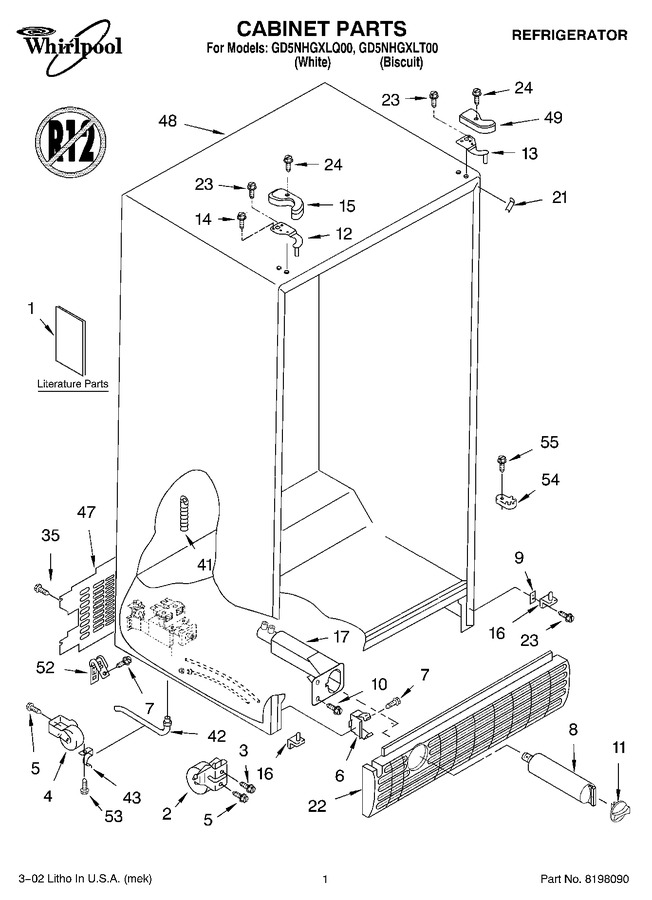

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2220699 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | LIT2220495 | Literature Parts (energy Guide) |
|
- | |||||
| 1 | LIT2220105 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | EDR5RXD1B | Water Filter (Replaces: 2203220) |
|
Immediately | $ 49.99 | ||||
| 9 | WP2181911 | Shim (1) (Replaces: 2156056) |
|
$ 34.87 | |||||
| 10 | WP489500 | Screw (Replaces: 489500) |
|
$ 8.17 | |||||
| 11 | WP2186494W | Cap, Water Filter (white) (Replaces: 2186494W) |
|
$ 58.51 | |||||
| 11 | WP2186494T | Cap, Water Filter (biscuit) (Replaces: 2186494T) |
|
$ 12.47 | |||||
| 12 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 100.30 | |||||
| 13 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 103.13 | |||||
| 14 | WP489128 | Screw (Replaces: 8281149) |
|
$ 11.40 | |||||
| 15 | 2203407T | Hinge Cover (biscuit) |
|
- | |||||
| 15 | WP2203407W | Hinge Cover (white) (Replaces: 2203407W) |
|
$ 21.79 | |||||
| 16 | 8201707 | Hinge Bottom (2) (Replaces: 2217075) |
|
$ 97.45 | |||||
| 17 | WP2186443 | Housing, Water Filter (Replaces: 2186443) |
|
Immediately | $ 97.35 | ||||
| 21 | 2196094 | Filler, Wrapper (white) |
|
- | |||||
| 21 | 2196150 | Filler, Wrapper (biscuit) |
|
- | |||||
| 22 | W10803964 | Grille (white) (Replaces: 2198468W) |
|
$ 134.09 | |||||
| 22 | 2198468T | Grille (biscuit) |
|
- | |||||
| 23 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 24 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 35 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 41 | W11566763 | Drain Fitting (Replaces: 940139) |
|
Immediately | $ 53.45 | ||||
| 42 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 32.90 | ||||
| 43 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 11.28 | |||||
| 47 | WP2188755 | Cover, Unit (Replaces: 2204203) |
|
$ 142.71 | |||||
| 48 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 49 | WP2203408W | Hinge Cover (white) (Replaces: 2203408W) |
|
$ 22.02 | |||||
| 49 | 2203408T | Hinge Cover (biscuit) |
|
- | |||||
| 52 | 549193 | Clamp-service Cord |
|
$ 14.06 | |||||
| 53 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 54 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 55 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 |
