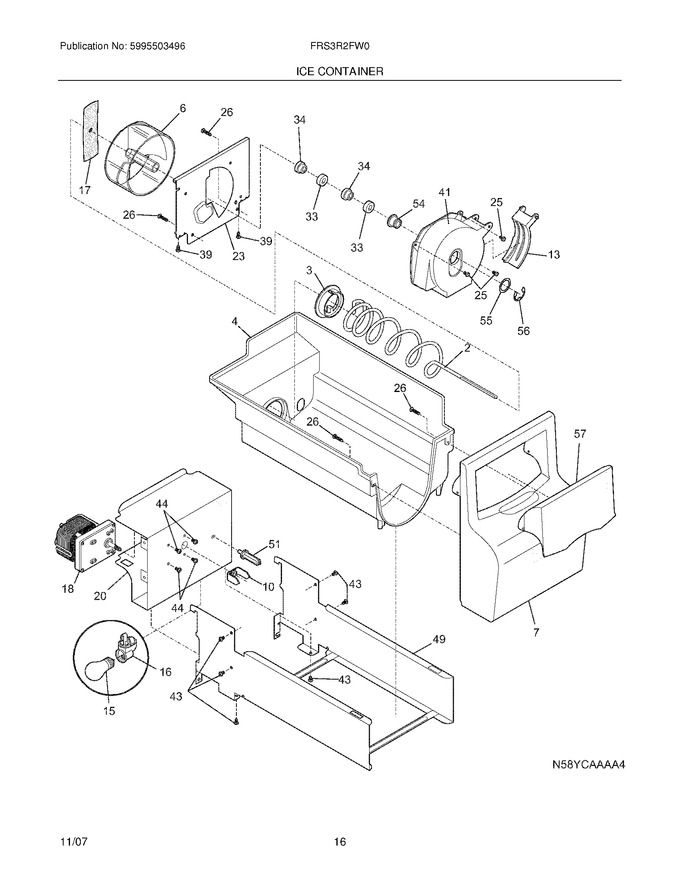

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241716101		Auger-ice				$ 130.36
3	241685201		Cam-drive				$ 46.46
4	241734001		Container-ice,bucket Only				$ 117.34
6	241685101		Drum-ice Disp				$ 57.49
7	241734201		Front-ice Container				$ 96.71
10	241726501		Bar-drive				$ 65.36
13	241885001		Gate   (Replaces: 241685301)				$ 84.26
16	241559801		Socket-light				$ 80.75
17	241684503		Drive Blade   (Replaces: 241684501)				$ 19.38
20	241734801		Cover-motor		Appelez-nous	-
23	241684001		Plate-front				$ 166.16
25	240555002		Screw,hex Washer Head ,8-32t X 0.375   (Replaces: 241690701)			Immediately	$ 14.96
26	241690602		Screw,cr Pan Hd ,10-16 X 0.500   (Replaces: 215503205)				$ 11.81
33	241684802		Spacer   (Replaces: 241684801)				$ 10.11
34	241689802		Spacer   (Replaces: 241689801)				$ 9.27
39	241690501		Screw				$ 18.11
41	241885001		Housing-crusher   (Replaces: 241685601)				$ 84.26
43	218359202		Screw,pan Head ,8-32 X 0.250				$ 11.81
44	218359202		Screw,8-32 X 1/4   (Replaces: 241842101)				$ 11.81
49	241734401		Rail Assy				$ 230.74
51	241676301		Rotation Stop		Appelez-nous	-
54	241685001		Nut-auger				$ 22.05
55	241690306		Washer				$ 55.13
56	241690201		E-ring				$ 21.26
57	241734101		Door-access				$ 56.23
F15	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 22.75
F18	242221501		Motor-auger   (Replaces: 241676201)				$ 222.79
NI	240352602		Wiring Harness,internal,wiring Harness		Appelez-nous	-
NI	240507202		Deflector-ice Container				$ 69.30
NI	241860802		Ice Container Assy,w/moving Parts				$ 270.00
NI	241731901		Harness,wiring		Appelez-nous	-
