SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

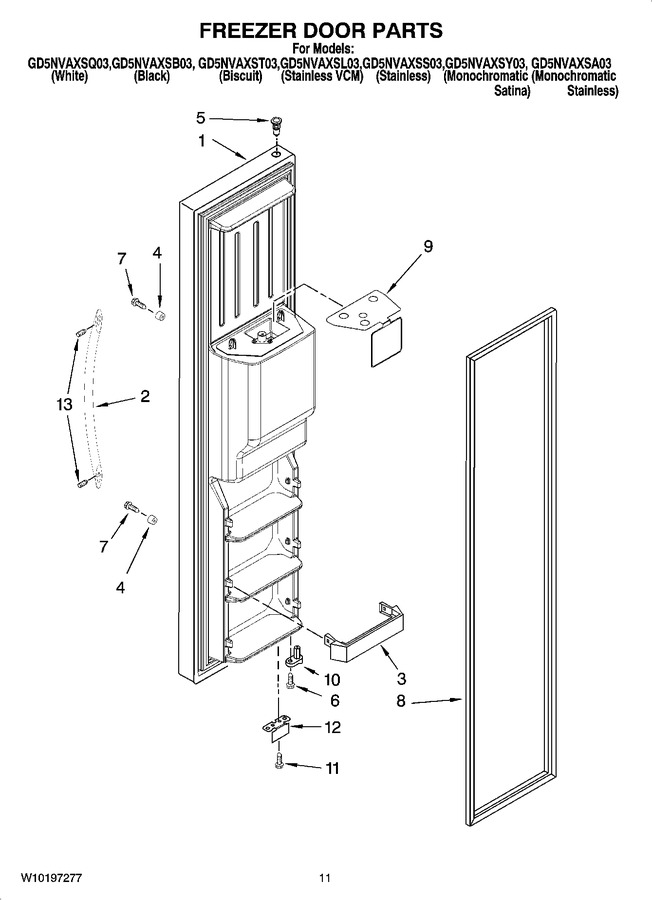

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10149575		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
1	W10149628		Freezer Door (includes 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10149631		Freezer Door (includes 8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
1	W10149632		Freezer Door (includes 8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
1	W10149624		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10149626		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10149625		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
2	2319729S		Handle (includes 13) (stainless)		Appelez-nous	-
2	2254600T		Handle (includes 13) (biscuit)		Appelez-nous	-
2	WP2254600B		Handle (includes 13) (black)   (Replaces: 2254600B)				$ 219.21
2	WP2254600W		Handle (includes 13) (white)   (Replaces: 2254600W)				$ 246.90
3	WP2171157		Trivet (3)   (Replaces: 2171157K)				$ 63.70
4	WPW10170540		Clip   (Replaces: 2219698)			Immediately	$ 8.51
5	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
6	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
7	WP488163		Screw   (Replaces: 488208)				$ 7.92
8	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
8	2159074		Door Gasket, Magnetic (mist)   (Replaces: 2221303)				$ 325.70
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
9	2304895		Safety Barrier		Appelez-nous	-
10	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 21.16
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2303113B		Bracket, Door Stop (black)		Appelez-nous	-
12	2303113		Bracket, Door Stop (white)		Appelez-nous	-
13	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 15.79
	2317709		Tube, Water Dispenser		Appelez-nous	-
	2310084		Wire Assembly, Freezer Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
