SELECT A DIAGRAM

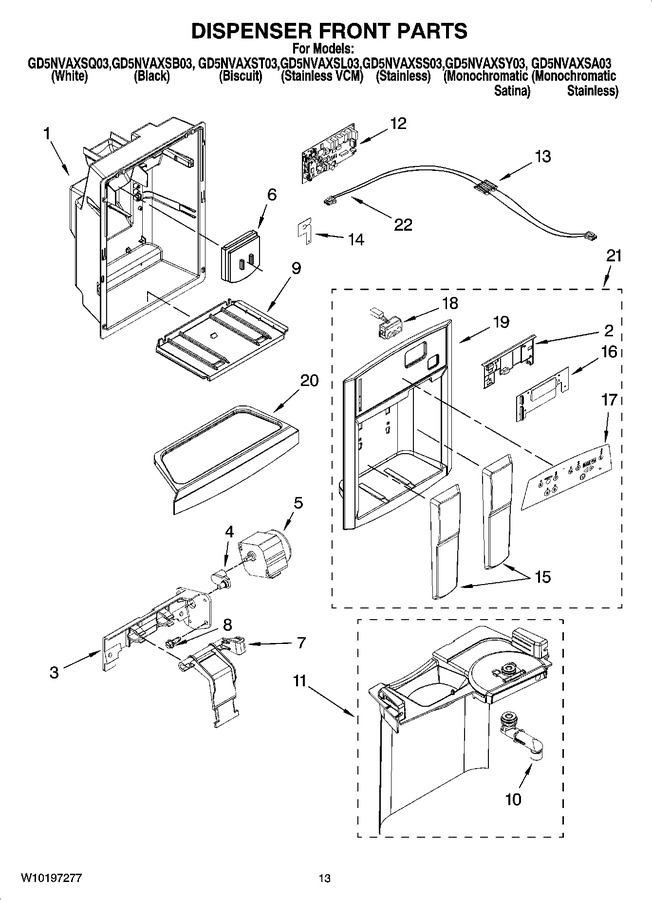

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2305219		Cover, Pc Board				$ 92.99
3	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 101.60
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 101.82
5	WPW10184813		Motor, Ice Door   (Replaces: 2305262)			Immediately	$ 108.33
6	WP2305258		Door, Ice   (Replaces: 2305258)				$ 26.09
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 92.63
8	WP4449745		Screw (2)   (Replaces: 4449745)				$ 7.98
9	2305413AP		Grille, Slide (apollo Grey)		Appelez-nous	-
9	2305413T		Grille, Slide (biscuit)		Appelez-nous	-
9	2305413B		Grille, Slide (black)		Appelez-nous	-
9	2305413W		Grille, Slide (white)		Appelez-nous	-
10	WP2305235		Spigot   (Replaces: 2305235)				$ 147.07
11	2305460US		Separator Assembly (universal Silver)		Appelez-nous	-
11	2305460W		Separator Assembly (white)		Appelez-nous	-
11	2305460T		Separator Assembly (biscuit)		Appelez-nous	-
11	2305460B		Separator Assembly (black)		Appelez-nous	-
12	WP2303843		Electronic Control (core)   (Replaces: 2303843)				$ 365.39
13	2308165		Ferrite Bead		Appelez-nous	-
14	2305447		Clip, Wiring		Appelez-nous	-
15	2305247MG		Pad, Ice & Water (mono Satina)		Appelez-nous	-
15	2305247GM		Pad, Ice & Water (black)		Appelez-nous	-
15	2305247CG		Pad, Ice & Water (white)		Appelez-nous	-
15	2305247WL		Pad, Ice & Water (biscuit)		Appelez-nous	-
16	2304170		Cover Assembly, Electronic Control		Appelez-nous	-
18	2317205		Led Assembly		Appelez-nous	-
20	2305408T		Tray, Housing (biscuit)		Appelez-nous	-
20	2305408US		Tray, Housing (universal Silver)		Appelez-nous	-
20	2305408W		Tray, Housing (white)		Appelez-nous	-
20	2305408B		Tray, Housing (black)		Appelez-nous	-
21	2305422W		Front Cover Assembly (includes Items 15, 16, 17, 18, & 19) (white)		Appelez-nous	-
21	2305422B		Front Cover Assembly (includes Items 15, 16, 17, 18, & 19) (black)		Appelez-nous	-
21	2305422T		Front Cover Assembly (includes Items 15, 16, 17, 18, & 19) (biscuit)		Appelez-nous	-
21	2305422US		Front Cover Assembly (includes Items 15, 16, 17, 18, & 19) (universal Silver)		Appelez-nous	-
22	W10178851		Wire Assembly, User Interface		Appelez-nous	-
