SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner, Lit/optional


04 - Unit


05 - Shelf

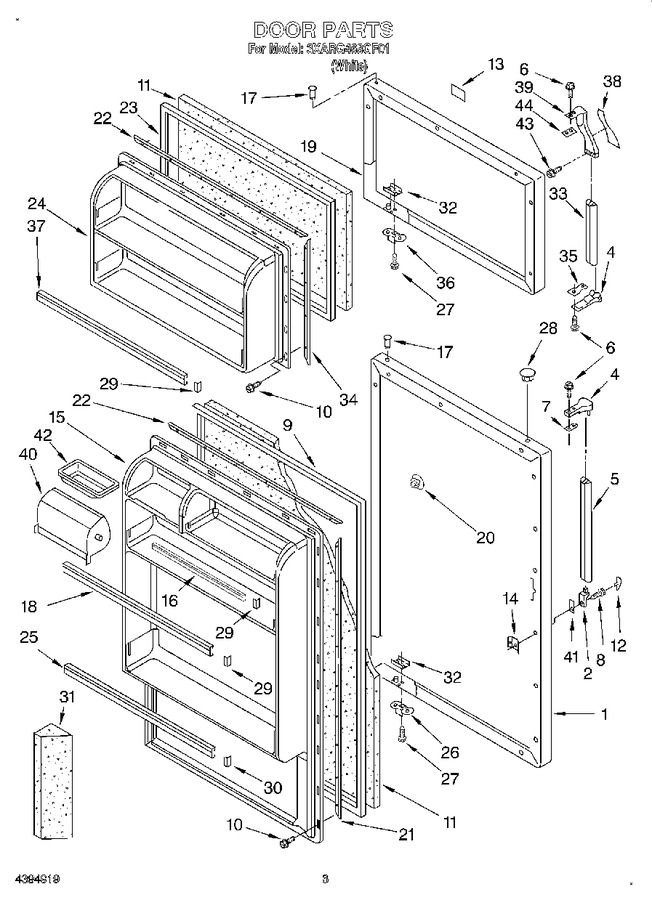

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195835		Refrigerator Door Panel (also Order Item 11)		Appelez-nous	-
2	935105		End Cap				$ 32.80
4	944157		End Cap, Handle		Appelez-nous	-
5	2157109		Handle Center		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.49
7	935074		Shim		Appelez-nous	-
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
9	2188448A		Door Gasket, Magnetic   (Replaces: 2191888)				$ 154.65
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	987873		Cover, Screw		Appelez-nous	-
13	2175383		Nameplate		Appelez-nous	-
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
15	2173725		Panel, Interior Door (refrigerator)		Appelez-nous	-
16	WP2163629		Trim, Door Shelf   (Replaces: 2163630)			Immediately	$ 63.40
17	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
18	WP2163629		Trim, Door   (Replaces: 2163631)			Immediately	$ 63.40
19	2195833		Freezer Door Panel (also Order Item 11)		Appelez-nous	-
20	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 7.40
21	1122551		Retainer, Gasket		Appelez-nous	-
22	1120614		Retainer, Gasket				$ 27.51
23	2188462A		Door Gasket, Magnetic   (Replaces: 2191889)			Immediately	$ 114.77
24	9790358		Interior Door Panel (freezer)		Appelez-nous	-
25	2163628		Trim, Door Shelf		Appelez-nous	-
26	944036		Stop, Door		Appelez-nous	-
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 7.80
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
31	2196665		Support		Appelez-nous	-
32	2183198		Tap Plate		Appelez-nous	-
33	2150149		Handle, F.c.		Appelez-nous	-
34	1122553		Retainer, Gasket		Appelez-nous	-
35	943188		Spacer				$ 7.80
36	944035		Stop, Door		Appelez-nous	-
37	WP2201061		Trim, Door (2)   (Replaces: 2195873)				$ 118.40
38	1108828		Insert, Top		Appelez-nous	-
39	944163		Handle End,				$ 53.54
40	2174804		Door, Compartment		Appelez-nous	-
41	935076		Shim		Appelez-nous	-
42	2165792		Tray, Butter		Appelez-nous	-
43	489022		Screw		Appelez-nous	-
44	943187		Shim				$ 25.14

    View Diagram in Separate Window       Print Part List
