SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts

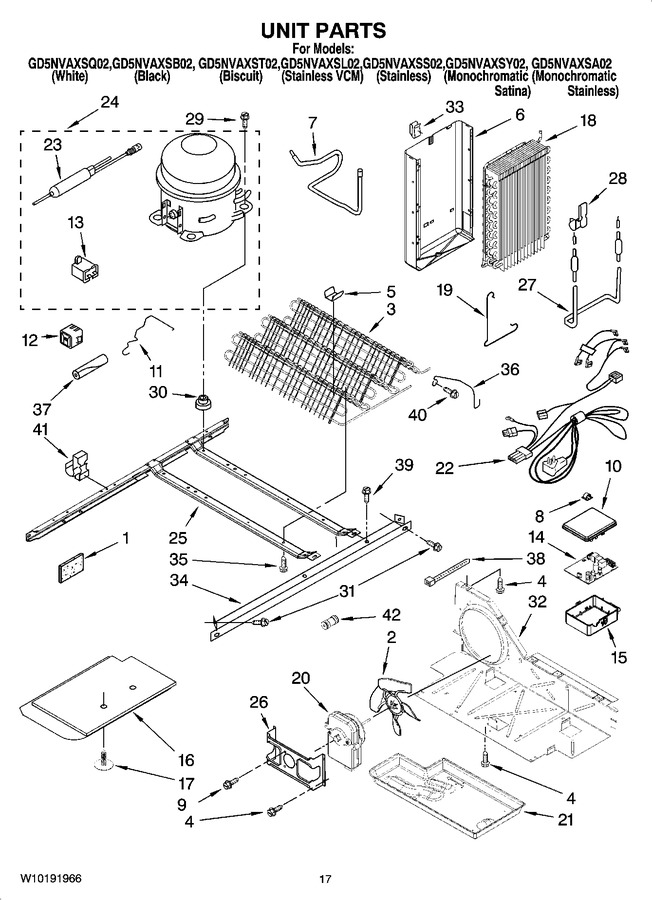

10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Insulation, Sound Dampening   (Replaces: 2169104)			Immediately	$ 14.07
2	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
3	2324712		Condenser Assembly   (Replaces: W10121484)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
6	2217194		Heat Shield And Drain Pan		Appelez-nous	-
7	2205765		Tube Suction				$ 36.04
8	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
9	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
10	W10133000		Cover				$ 46.00
11	2223314		Clip, Retaining		Appelez-nous	-
12	WP2304885		Start Device, Combination (start Relay And Overload) For Production Compressor   (Replaces: 2304885)				$ 179.47
13	WPW10662129		Capacitor (production)   (Replaces: 2169373)			Immediately	$ 58.86
13	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
14	2304078		Electronic Control		Appelez-nous	-
15	2255623		Control Box				$ 51.40
16	2304899		Unit Cover, Bottom		Appelez-nous	-
17	489396		Clip				$ 10.72
18	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
19	2161324		Clip		Appelez-nous	-
20	WP2188874		Motor, Fan   (Replaces: 2188874)			Immediately	$ 113.96
21	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
22	2187817		Harness, Unit				$ 130.87
23	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
23	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
24	W10139460		Compressor (includes Items 13, 23, & 30) (also Order 876765 Tube Kit)   (Replaces: W10120461)				$ 491.28
25	2304904		Unit Mounting Frame		Appelez-nous	-
26	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
27	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
28	W11623163		Clip, Heater   (Replaces: 2304287)		Appelez-nous	-
29	876811		Screw   (Replaces: 489373)				$ 7.42
30	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
30	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
31	489340		Screw		Appelez-nous	-
32	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
33	2155547		Clip, Heat		Appelez-nous	-
34	2305374		Unit Mounting Rail				$ 80.64
35	W11544659		Screw   (Replaces: 8281232)				$ 13.67
36	2260517		Guard, Fan		Appelez-nous	-
37	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
38	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.90
39	WP489427		Screw   (Replaces: 489427)				$ 7.47
40	WP489478		Screw   (Replaces: 489478)				$ 7.75
41	W10169512		Clip, Wire & Tube		Appelez-nous	-
42	WPW10271543		Union   (Replaces: 2320323)			Immediately	$ 33.74
	978026		Valve, Access (5/16``)			Immediately	$ 128.09
	876764		Valve, Access(3/16``)			Immediately	$ 91.35
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
	978030		Valve, Access (3/4``)				$ 130.71
	978029		Valve Access (5/8``)				$ 93.85
	978028		Valve, Access (1/2)		Appelez-nous	-
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
