Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2318849W Freezer Door (includes 8 And Dispenser Front Parts) (white) Appelez-nous -
1 2318849T Freezer Door (includes 8 And Dispenser Front Parts) (biscuit) Appelez-nous -
1 2318849SAP Freezer Door (includes 8 And Dispenser Front Parts) (mono Satina) Appelez-nous -
1 2318849B Freezer Door (includes 8 And Dispenser Front Parts) (black) Appelez-nous -
1 2318849LG Freezer Door (includes 8 And Dispenser Front Parts) (stainless Vcm) Appelez-nous -
1 2318849SB Freezer Door (includes 8 And Dispenser Front Parts) (stainless) Appelez-nous -
2 2319729S Handle (stainless) Appelez-nous -
2 WP2254600W Handle (white)   (Replaces: 2319729W) Special Order $ 235.14

2 WP2254600B Handle (black)   (Replaces: 2319729B) Special Order $ 208.77

2 2319729T Handle (biscuit) Appelez-nous -
3 WP2171157 Trivet (3)   (Replaces: 2171157K) Special Order $ 60.67

4 WPW10170540 Clip   (Replaces: 2219698) In-Stock Immediately $ 8.51

5 WP2182181 Thimble, Top   (Replaces: 2308091) Special Order $ 7.76

7 WP488163 Screw   (Replaces: 488208) Special Order $ 7.54

8 2159074 Door Gasket, Magnetic (mist)   (Replaces: 2221303) Special Order $ 310.19

8 2159082 Door Gasket, Magnetic (black)   (Replaces: 2221314) Special Order $ 316.66

9 2304895 Safety Barrier Appelez-nous -
12 WP2223752 Door Closer, Upper Cam   (Replaces: 2223752) Special Order $ 20.15

13 WP489483 Screw   (Replaces: 489420) Special Order $ 10.87

14 2303113B Bracket, Door Stop (black) Appelez-nous -
14 2303113 Bracket, Door Stop (white) Appelez-nous -
15 W11366418 Set Screw   (Replaces: W10010140) In-Stock Immediately $ 15.79

17 2317709 Tube, Water Dispenser Appelez-nous -
17 2310084 Wire Assembly, Freezer Door Appelez-nous -
17 WP3400012 Screw   (Replaces: 3400012) Special Order $ 7.82


    View Diagram in Separate Window     Print Icon   Print Part List

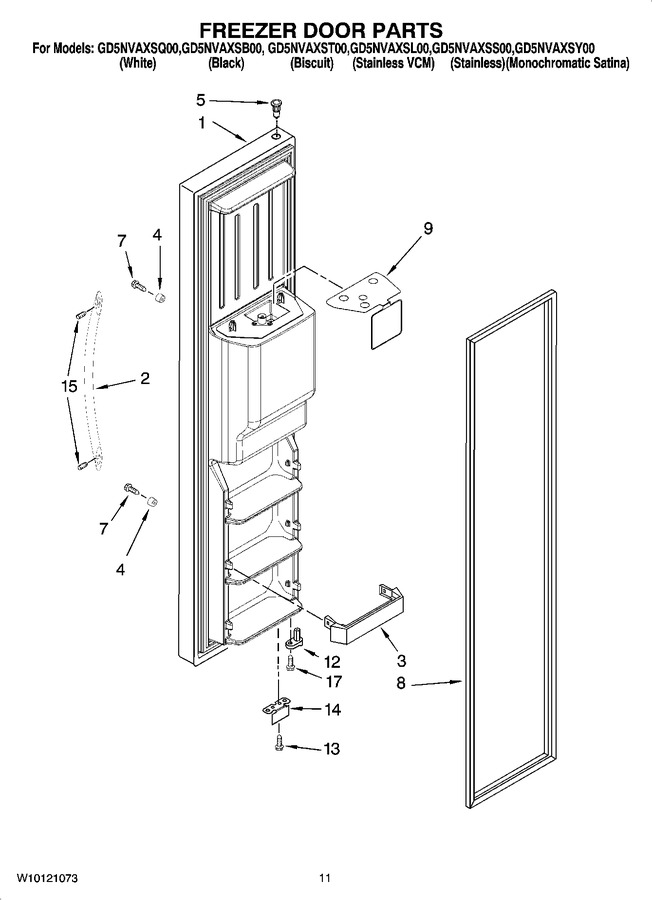

Diagram for GD5NVAXSY00
