SELECT A DIAGRAM

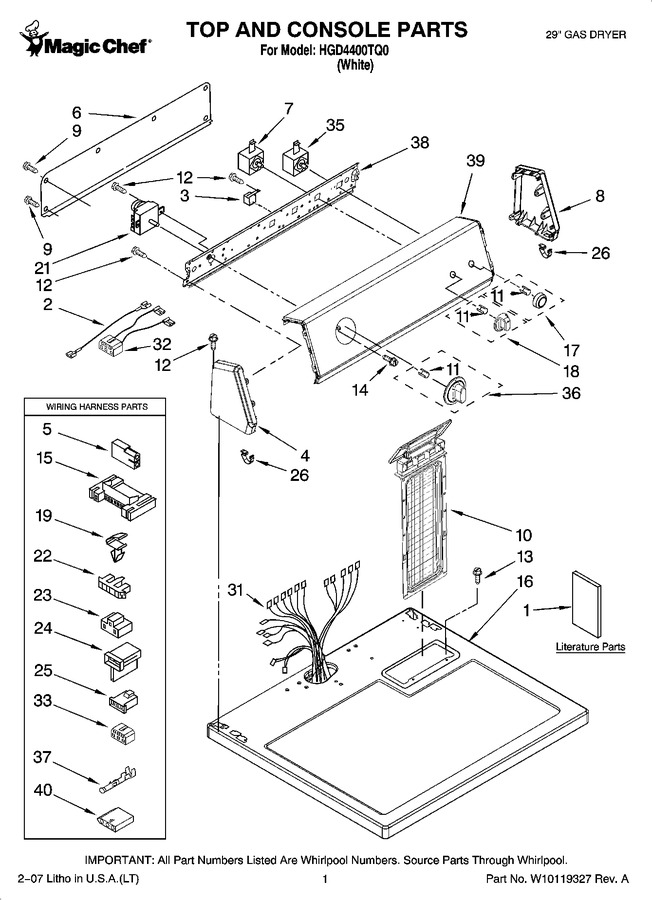

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8576817		Wiring Diagram		Appelez-nous	-
1	W10089176		Sheet, Cycle Feature		Appelez-nous	-
1	W10088971		Instructions, Installation		Appelez-nous	-
1	W10088773		Use & Care Guide		Appelez-nous	-
2	3401684		Wire, Jumper (black)				$ 34.57
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	8579674		Cap, End (l.h.)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
8	8579673		Cap, End (r.h.)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector, Motor			Immediately	$ 54.45
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 349.25
17	W10110066		Knob, Push-to-start		Appelez-nous	-
18	WPW10110063		Knob, Control   (Replaces: W10110063)			Immediately	$ 59.13
19	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
21	WP8299765		Timer Assembly (60 Hz.)   (Replaces: 8299765)				$ 336.63
22	3397269		Connector-timer				$ 25.55
23	3401144		Connector (pts) Relay				$ 12.81
24	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 6.02
25	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 7.30
26	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
31	8299878		Harness, Wiring		Appelez-nous	-
32	8539893		Wire, Jumper (temperature)				$ 19.78
33	3347243		Connector 6-circuit		Appelez-nous	-
35	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
36	W10110064		Timer Knob Assembly				$ 26.97
37	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
38	8579678		Bracket, Control		Appelez-nous	-
39	W10086684		Panel, Control		Appelez-nous	-
40	3936144		Connector				$ 21.22

    View Diagram in Separate Window       Print Part List
