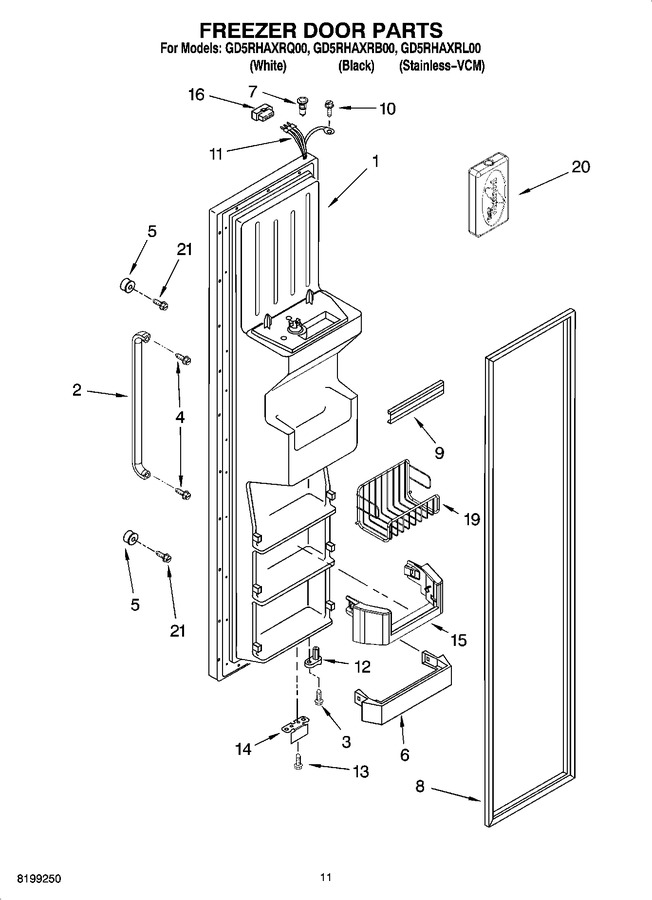

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2313304W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2313304B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2308270L		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
2	2303534W		Handle, Center (white)		Appelez-nous	-
2	2303534S		Handle, Center (stainless)		Appelez-nous	-
2	2303534B		Handle, Center (black)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
4	8533976		Screw				$ 8.35
5	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
6	WP2171157		Trivet, Shelf (2)   (Replaces: 2171157)				$ 63.70
7	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2198619		Wiring Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
15	2223334		Trivet, Tilt Out				$ 25.46
16	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
19	2304309		Basket, Tilt Out				$ 77.01
20	2255459		Bottle, Ice Pack		Appelez-nous	-
21	WP488163		Screw   (Replaces: 488208)				$ 7.92
