SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts

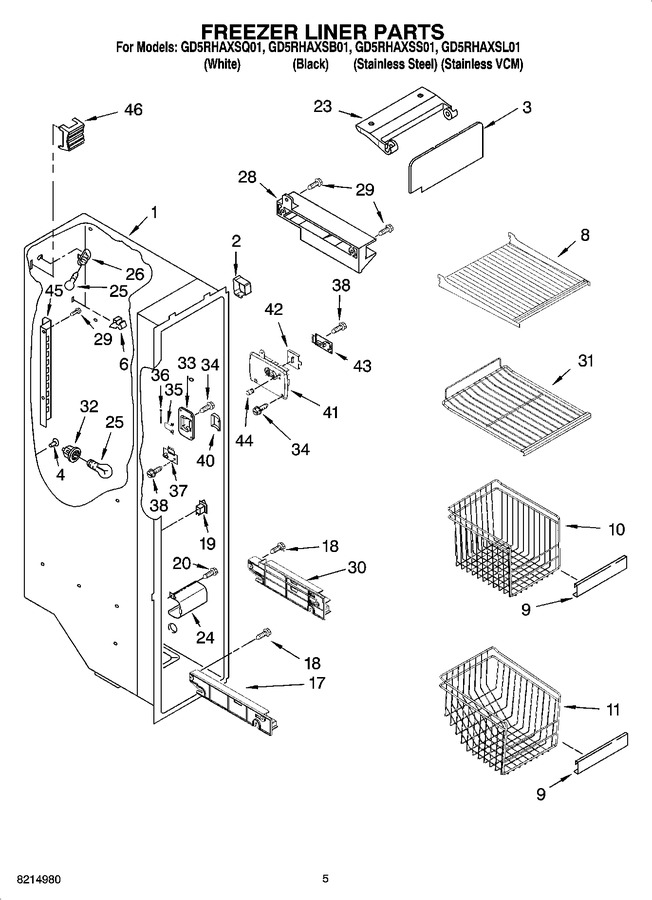

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2303234		Shield, Wiring		Appelez-nous	-
3	WP2255720		Cover, Ice Maker   (Replaces: 2255588)				$ 74.82
4	WP941839		Grommet   (Replaces: 941839)				$ 7.65
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
8	2205837K		Shelf, Wire (2)				$ 42.67
9	2195905K		Trim, Basket		Appelez-nous	-
10	2301190		Basket, Square				$ 90.43
11	2301191		Basket, Slope				$ 96.19
17	2301290		Slide, Basket (left Side)				$ 134.88
17	2301289		Slide, Basket (right Side)				$ 86.80
18	W10759522		Screw   (Replaces: W10004810)				$ 7.75
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	W10142289		Screw   (Replaces: 3400893)				$ 9.15
23	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.19
24	W11298978		Light Lens   (Replaces: 2212340)				$ 93.88
25	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
26	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 110.16
28	2212321		Slide, Ice Maker Mounting				$ 67.14
29	WP489478		Screw   (Replaces: 489478)				$ 7.75
30	2301293		Track, Basket-dual (right Side)		Appelez-nous	-
30	2301294		Track, Basket-dual (left Side)		Appelez-nous	-
31	2211746K		Shelf, Slide Out Upper		Appelez-nous	-
32	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 101.10
33	WP2198587		Cover, Emitter   (Replaces: 2255572)				$ 105.55
34	WPW10142283		Screw   (Replaces: 8281185)				$ 9.84
35	WP2198635		Spring   (Replaces: 2198635)				$ 87.08
36	WP2198634		Pin   (Replaces: 2198634)				$ 17.76
37	W11629974		P.c. Board Emitter   (Replaces: 2220398)			Immediately	$ 401.07
38	2006254		Screw   (Replaces: 489214)				$ 13.13
40	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 48.27
41	2255558		Cover, Receiver				$ 41.19
42	2315398		Slide, Ice Maker Shut Off   (Replaces: 2255562)				$ 10.90
43	W10757851		P.c. Board, Receiver   (Replaces: 2255114)			Immediately	$ 311.76
44	WP2198643		Lens   (Replaces: 2198643)				$ 8.18
45	2198609		Ladder (left Side)				$ 42.40
45	2198610		Ladder (right Side)				$ 63.20
46	2198589		Light Shield		Appelez-nous	-
