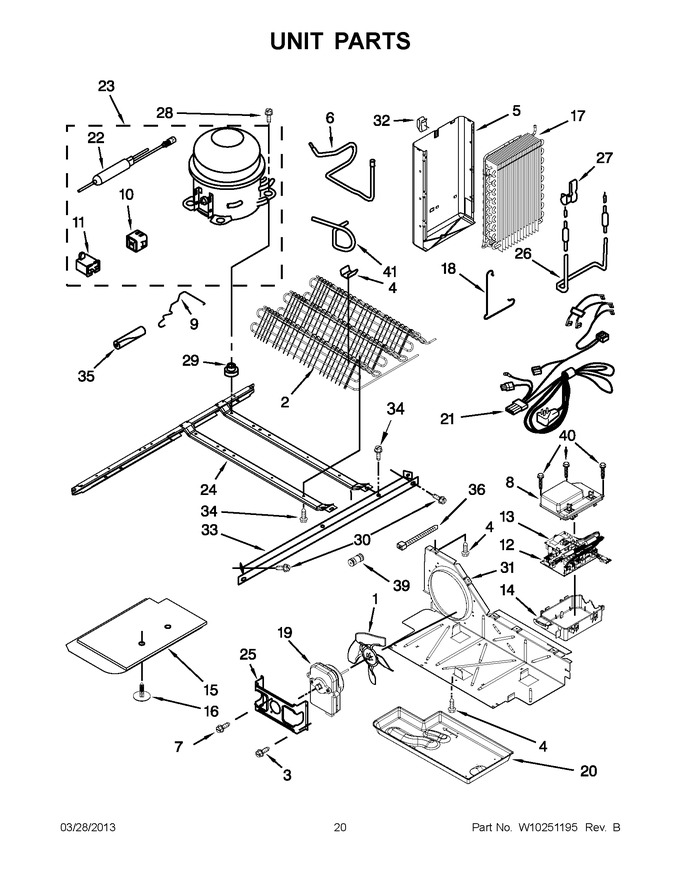

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10156818 | Blade, Fan (Replaces: 12825802) |
|
Immediately | $ 62.11 | ||||
| 2 | 2324712 | Condenser (Replaces: W10196260) |
|
$ 323.45 | |||||
| 3 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 4 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 19.38 | |||||
| 5 | 2304289 | Shield, Heat |
|
- | |||||
| 6 | W10528574 | Tube Suction (Replaces: W10177642) |
|
$ 160.36 | |||||
| 7 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 8 | 2323188 | Cover |
|
- | |||||
| 9 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 11.87 | ||||
| 10 | WPW10189190 | Start Device, Combination (start Relay And Overload) For Production Compressor Only (Replaces: W10189190) |
|
Immediately | $ 131.29 | ||||
| 11 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 12 | WPW10210789 | Control, Electronic (Replaces: W10210789) |
|
$ 361.61 | |||||
| 13 | WPW10356039 | Control, Ps Electronic (Replaces: W10120821) |
|
Immediately | $ 377.04 | ||||
| 14 | 2323186 | Control Box |
|
$ 107.48 | |||||
| 15 | 2304899 | Unit Cover, Bottom |
|
- | |||||
| 16 | 489396 | Clip |
|
$ 11.26 | |||||
| 17 | WP2188823 | Assembly, Evaporator (Replaces: 2188823) |
|
Immediately | $ 381.49 | ||||
| 18 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 19 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 20 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 21 | WPW10291106 | Harness, Unit (Replaces: 2310497) |
|
$ 277.79 | |||||
| 22 | WPW10143759 | Drier (production) (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 23 | W10233961 | Compressor (Replaces: W10183575) |
|
$ 643.40 | |||||
| 24 | 2304904 | Frame, Unit Mounting |
|
- | |||||
| 25 | WP2181929 | Bracket, Fan Motor (Replaces: 2181929) |
|
$ 12.93 | |||||
| 26 | WP2323198 | Hearter, Defrost (Replaces: 2323198) |
|
Immediately | $ 90.70 | ||||
| 27 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 28 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 29 | 876811 | Grommet (Replaces: 1100826) |
|
$ 7.79 | |||||
| 30 | 489340 | Bolt |
|
- | |||||
| 31 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 101.20 | |||||
| 32 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 33 | 2305374 | Rail, Unit |
|
$ 84.67 | |||||
| 34 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 35 | W11751592 | Sleeve, Pressure Switch Hose (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 36 | WPW10339879 | Tie, Wire (Replaces: 2172840) |
|
$ 8.30 | |||||
| 39 | WPW10334458 | Connector, Water Tube (Replaces: 2320322) |
|
$ 22.67 | |||||
| 40 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 41 | W10221712 | Tube, Process |
|
- | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access Ÿ``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (5.25 Ozs. (r-134a)) |
|
- | |||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 |
