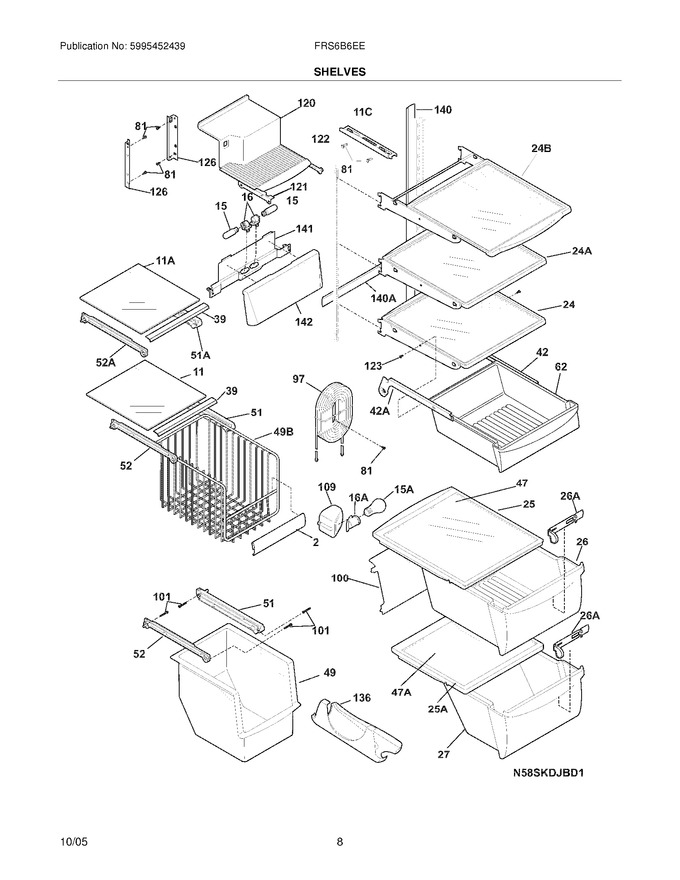

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510604		Trim-basket				$ 74.08
11	240350605		Shelf-freezer,glass ,lower   (Replaces: 240350668)				$ 118.81
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 81.18
16	240590403		Socket-light   (Replaces: 240590401)				$ 29.49
24	240355203		Shelf-``spill-safe``,fixed				$ 422.15
25	240350702		Cover-crisper Pan,upper			Immediately	$ 46.58
26	240351061		Pan-crisper,upper   (Replaces: 240351020)			Immediately	$ 122.23
27	240351240		Pan-crisper,lower   (Replaces: 240351218)				$ 226.05
39	240367602		Trim-shelf,front				$ 50.40
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 63.00
47	240350649		Insert-pan Cover,glass   (Replaces: 240350602)			Immediately	$ 137.66
49	240564401		Basket-sliding			Immediately	$ 176.56
51	240343002		Hanger-basket,rh				$ 72.47
52	240343102		Hanger-basket,lh				$ 77.52
62	240342830		Pan-meat   (Replaces: 240342817)				$ 95.54
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 15.75
97	240545302		Water Tank Assy,coiled Tubing ,front Filter   (Replaces: 240545303)				$ 311.85
100	240326304		Cover-water Tank   (Replaces: 240326302)				$ 81.74
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 14.96
109	240351301		Base-crisper Light Socket				$ 15.65
120	241691901		Shelf-ice Cream   (Replaces: 241559001)				$ 88.47
121	241561001		Rail-ice Cream Shelf,lh				$ 112.92
122	241561201		Rail-ice Cream Shelf,rh				$ 51.18
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 0.438   (Replaces: 215005100)				$ 16.54
126	241674401		Channel,auger Mtg ,lh				$ 52.76
126	241674402		Channel,auger Mtg ,rh				$ 48.04
136	240424501		Dispenser-can,white		Appelez-nous	-
140	240430501		Channel,wtr Tube Cover				$ 108.68
141	240585404		Bracket-light Socket				$ 99.49
142	240582701		Shield-light,deli Pan		Appelez-nous	-
11A	240350604		Shelf-freezer,glass ,upper   (Replaces: 240350667)				$ 127.24
11C	240324101		Shelf-pizza				$ 66.57
15A	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 22.75
24A	240355270		Shelf-``spill-safe``,fixed   (Replaces: 240355205)				$ 189.59
24B	240350150		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350106)				$ 196.33
25A	240350903		Cover-crisper Pan,lower   (Replaces: 240350902)				$ 102.21
26A	240362201		Control-humidity				$ 77.18
42A	240350001		· Spring-meat Pan Rail				$ 76.55
42A	240349901		Block-meat Pan Rail,lh				$ 67.01
42A	240349701		Hanger-meat Pan,lh			Immediately	$ 64.58
47A	240350603		Insert-pan Cover,glass			Immediately	$ 128.36
49B	240530504		Basket-sliding,upper ,full				$ 207.81
51A	240395502		Hanger-basket,rh				$ 81.11
52A	240395602		Hanger-basket,lh				$ 68.51
F140	240430503		Channel,wtr Tube Cover		Appelez-nous	-
F16A	241537502		Harness-wiring		Appelez-nous	-
F16A	218906802		Socket-light   (Replaces: 241513901)				$ 19.69
NI	240362101		Clip-slide,cover-crisper				$ 52.25
NI	240349801		Clip-slide,pan-crisper				$ 22.75
