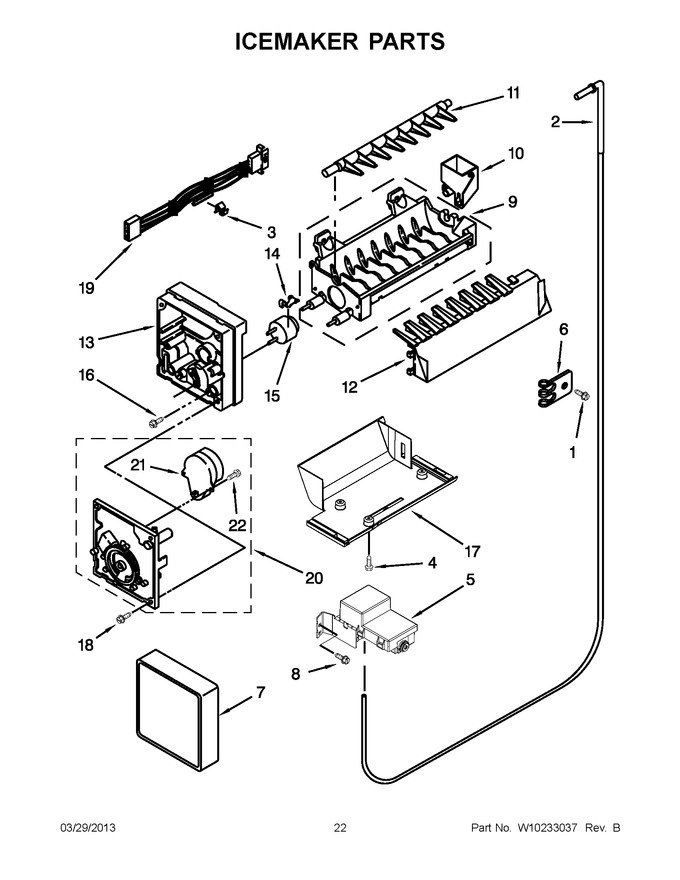

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 2 | 2303216 | Fitting, Water |
|
$ 55.81 | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 5 | W10408179 | Filter Valve Assembly (Replaces: 2188708) |
|
Immediately | $ 96.38 | ||||
| 6 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.92 | |||||
| 7 | WPW10289690 | Cover, Front (Replaces: 2174358) |
|
Immediately | $ 8.82 | ||||
| 8 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 9 | WPW10190929 | Mold & Heater Assembly (Replaces: W10122527) |
|
$ 233.15 | |||||
| 10 | WPW10272168 | Cup, Water Fill (Replaces: 2304969) |
|
$ 76.48 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 12 | W10297244 | Stripper, Ice (Replaces: 2198598) |
|
$ 76.80 | |||||
| 13 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 109.80 | |||||
| 14 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 15 | WP627985 | Thermostat (Replaces: 627985) |
|
$ 114.64 | |||||
| 16 | 8533917 | Screw |
|
$ 14.04 | |||||
| 17 | 2303583 | Bracket, Icemaker Mounting |
|
$ 46.76 | |||||
| 18 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 19 | WP2187467 | Wire Assembly, Icemaker (Replaces: 2187467) |
|
$ 135.38 | |||||
| 20 | 8201515 | Assembly, Module & Motor (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 21 | 8201515 | Assembly, Motor (Replaces: 626683) |
|
Immediately | $ 141.64 | ||||
| 22 | 489136 | Screw |
|
$ 10.80 | |||||
| 100 | 2198597 | Assembly, Icemaker (complete) (Replaces: W10190960) |
|
Immediately | $ 182.32 |
