SELECT A DIAGRAM

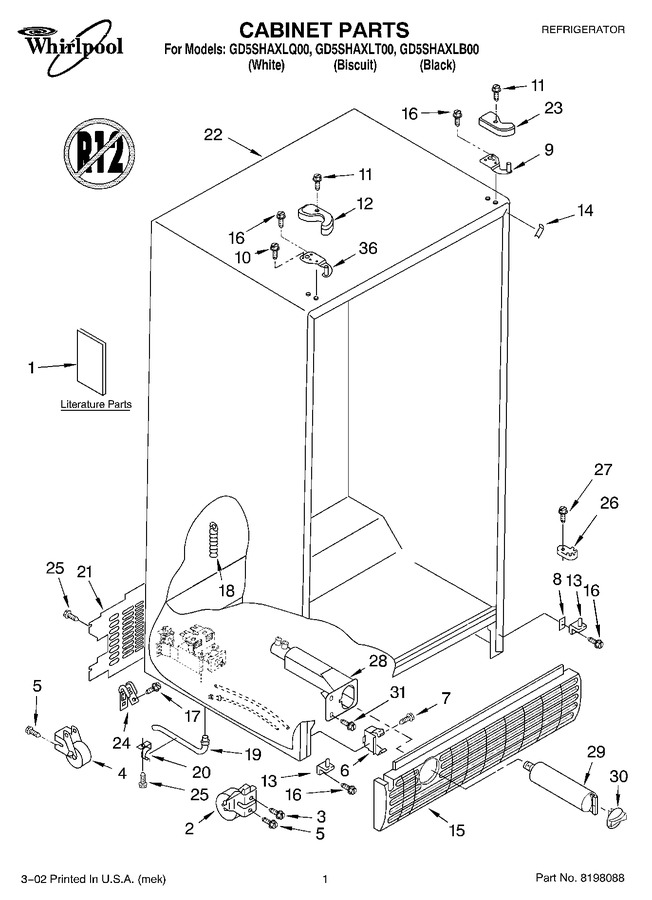

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2220699		Literature Parts (owner`s Manual)		Appelez-nous	-
1	LIT787316		Icemaker		Appelez-nous	-
1	LIT787808		Refrigerator		Appelez-nous	-
1	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	LIT2220104		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT2220497		Literature Parts (energy Guide)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 14.42
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 42.18
5	WP489427		Screw   (Replaces: 489427)				$ 7.84
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 8.11
7	WP489478		Screw   (Replaces: 489478)				$ 8.18
8	WP2181911		Shim   (Replaces: 2156056)				$ 34.87
9	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 103.13
10	WP489128		Screw   (Replaces: 8281149)				$ 11.40
11	WP8281227		Screw   (Replaces: 8281227)				$ 10.96
12	WP2203407W		Hinge Cover (white)   (Replaces: 2203407W)				$ 21.79
12	WP2203407B		Hinge Cover (black)   (Replaces: 2203407B)				$ 20.50
12	2203407T		Hinge Cover (biscuit)		Appelez-nous	-
13	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 97.45
14	2196094		Filler, Wrapper (white)		Appelez-nous	-
14	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
14	2196097		Filler, Wrapper (black)		Appelez-nous	-
15	2198468T		Grille (biscuit)		Appelez-nous	-
15	W10803964		Grille (black)   (Replaces: 2198468B)				$ 134.09
15	W10803964		Grille (white)   (Replaces: 2198468W)				$ 134.09
16	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
18	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 53.45
19	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 32.90
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 11.28
21	WP2188755		Cover, Unit   (Replaces: 2204203)				$ 142.71
22	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
23	WP2203408B		Hinge Cover (black)   (Replaces: 2203408B)				$ 19.56
23	2203408T		Hinge Cover (biscuit)		Appelez-nous	-
23	WP2203408W		Hinge Cover (white)   (Replaces: 2203408W)				$ 22.02
24	549193		Clamp-service Cord				$ 14.06
25	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
26	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.90
27	WP489483		Screw   (Replaces: 489483)				$ 11.41
28	WP2186443		Housing, Water Filter   (Replaces: 2186443)			Immediately	$ 97.35
29	EDR5RXD1B		Water Filter   (Replaces: 2203220)			Immediately	$ 49.99
30	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186494W)				$ 58.51
30	WP2186494B		Cap, Water Filter (black)   (Replaces: 2186494B)			Immediately	$ 55.86
30	WP2186494T		Cap, Water Filter (biscuit)   (Replaces: 2186494T)				$ 12.47
31	WP489500		Screw   (Replaces: 489500)				$ 8.17
36	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 100.30
