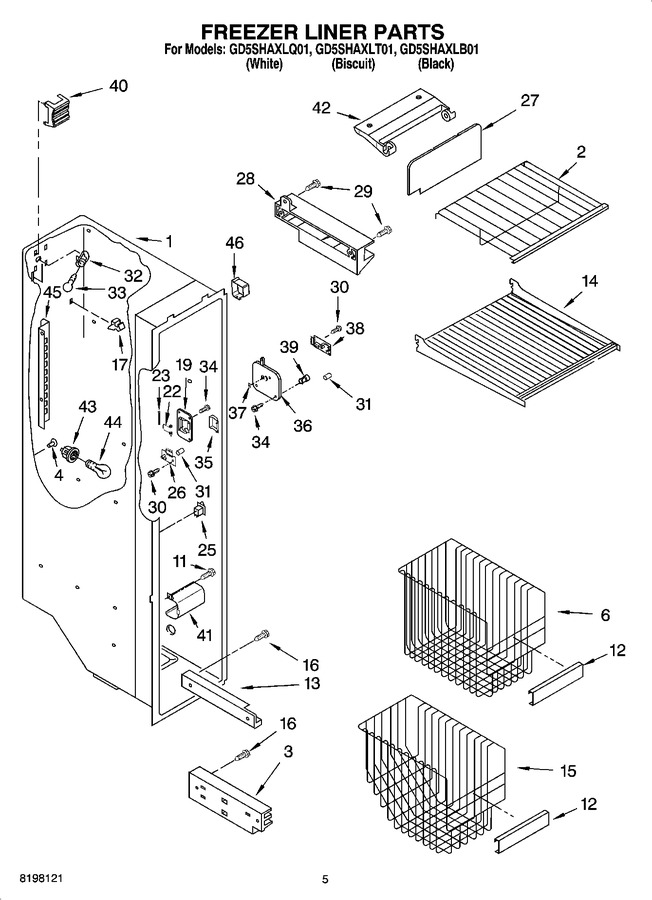

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
2	2211746		Shelf, Slide Out Upper		Appelez-nous	-
3	2216107		Track, Basket-dual (left)		Appelez-nous	-
3	2216106		Track, Basket-dual (right)		Appelez-nous	-
4	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
6	2181765		Basket, Tall		Appelez-nous	-
11	W10142289		Screw   (Replaces: 3400893)				$ 9.15
12	2195905		Trim, Basket				$ 38.60
13	2181759		Shelf Track (left Side)		Appelez-nous	-
13	2181760		Shelf Track (right Side)		Appelez-nous	-
14	2205837		Shelf		Appelez-nous	-
15	2181764		Basket		Appelez-nous	-
16	W10759522		Screw (8)   (Replaces: 486298)				$ 7.75
17	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
19	WP2198587		Cover, Emitter   (Replaces: 2198587)				$ 105.55
22	WP2198635		Spring   (Replaces: 2198635)				$ 87.08
23	WP2198634		Pin   (Replaces: 2198634)				$ 17.76
25	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
26	W11629974		P.c. Board Emitter   (Replaces: 2220398)			Immediately	$ 401.07
27	WP2255720		Cover, Ice Maker   (Replaces: 2198642)				$ 74.82
28	2212321		Slide, Ice Maker Mounting				$ 67.14
29	WP489478		Screw   (Replaces: 489478)				$ 7.75
30	2006254		Screw   (Replaces: 489214)				$ 13.13
31	2198665		Tube, P.c. Board				$ 21.52
32	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
34	WPW10142283		Screw   (Replaces: 8281185)				$ 9.84
35	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 48.27
36	2198588		Cover, Receiver		Appelez-nous	-
37	2315398		Slide, Ice Maker Shut Off   (Replaces: 2198637)				$ 10.90
38	W11629974		P.c. Board, Receiver   (Replaces: 2220402)			Immediately	$ 401.07
39	WP2198643		Lens   (Replaces: 2198643)				$ 8.18
40	2198589		Light Shield		Appelez-nous	-
41	W11298978		Light Lens   (Replaces: 2212340)				$ 93.88
42	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.19
43	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 101.10
44	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
45	2198609		Ladder (left Side)				$ 42.40
45	2198610		Ladder (right Side)				$ 63.20
46	2219878		Shield, Wiring		Appelez-nous	-
