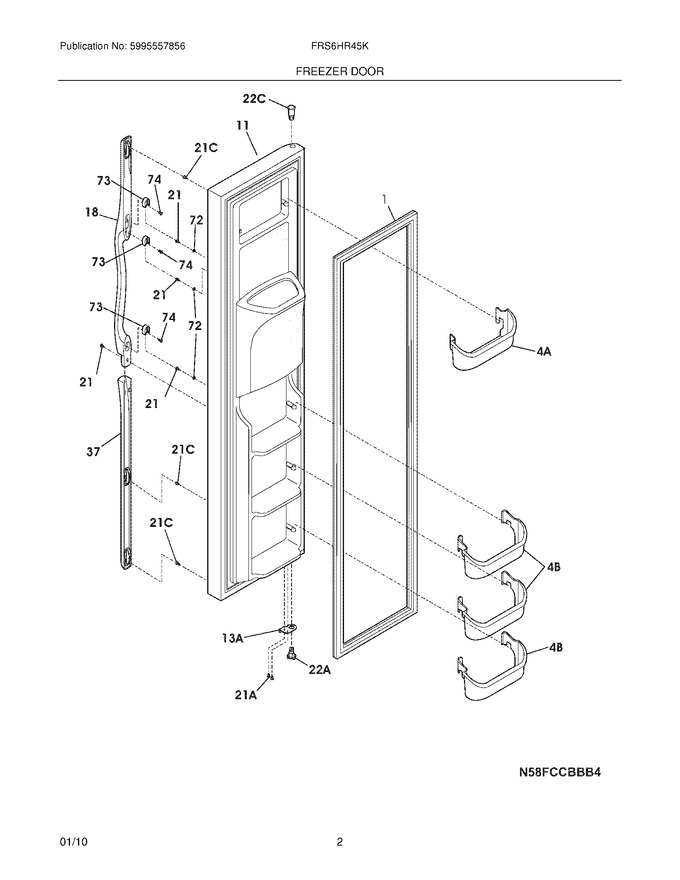

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241786014		Freezer Door Gasket, Grey, Magnetic   (Replaces: 241786006)				$ 105.74
11	241668151		Door-frzr,black ,complete Assy				$ 405.51
18	241934305		Handle-door,black		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 17.33
37	241927002		Trim-door Handle,black ,bottom				$ 41.96
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 50.40
74	215503204		Screw,cr Pan Hd ,10-16				$ 14.96
13A	240581906		Door Stop,black ,frzr				$ 81.11
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 9.27
21C	240521304		Screw,no.8-18 X 3/4				$ 11.08
22A	242000502		Bearing-hinge,black ,lower				$ 7.98
22C	240328404		Bearing-hinge,black ,upper				$ 25.41
4A	240334201		Bin-door,frzr-upper				$ 74.68
4B	240351601		Bin-door			Immediately	$ 65.26
NI	5304521763		Harness-wiring,door   (Replaces: 240552101)				$ 95.21
NI	240451503		Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe				$ 4.21
NI	241806601		Connector-water,straight			Immediately	$ 78.40
NI	5303918256		Dispenser Heater Kit				$ 526.84
