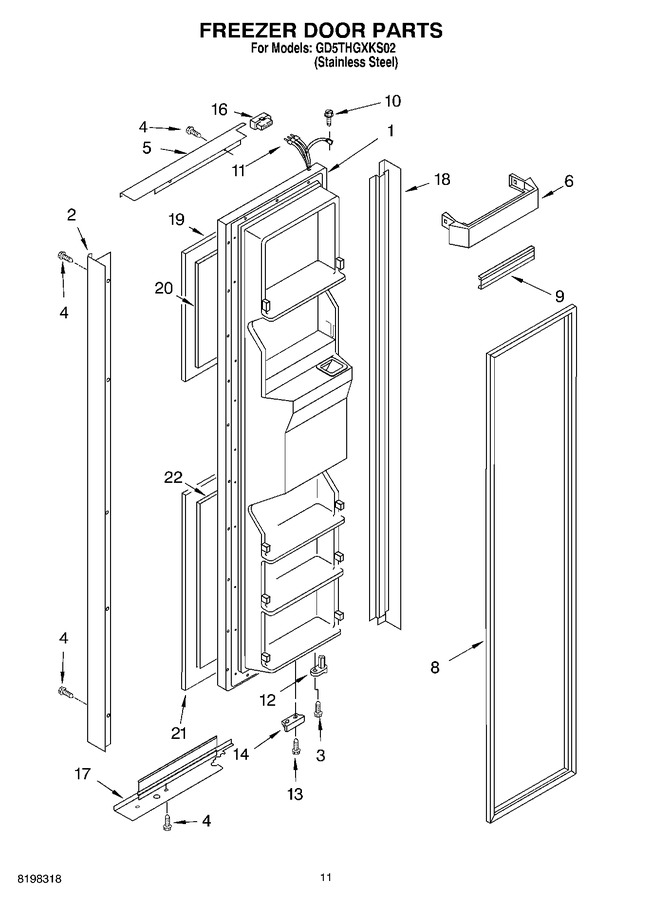

07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2219868B		Freezer Door (includes Item No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	2206851S		Handle (stainless Steel)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
4	3400897		Screw		Appelez-nous	-
5	2220433S		Trim, Door Top (stainless Steel)		Appelez-nous	-
6	WP2171157		Trivet, Shelf (4)   (Replaces: 2171157)				$ 63.70
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2311641		Wiring Harness   (Replaces: 2206601)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2206630B		Bracket, Door Stop (black)		Appelez-nous	-
16	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
17	2220435S		Trim, Door Bottom (stainless Steel)		Appelez-nous	-
18	2220428S		Trim, Hinge Side (stainless Steel)		Appelez-nous	-
19	2206887S		Panel, Top (stainless Steel)		Appelez-nous	-
20	2219799		Filler, Board Upper		Appelez-nous	-
21	2206888S		Panel, Lower (stainless Steel)		Appelez-nous	-
22	2219800		Filler, Board Lower		Appelez-nous	-
