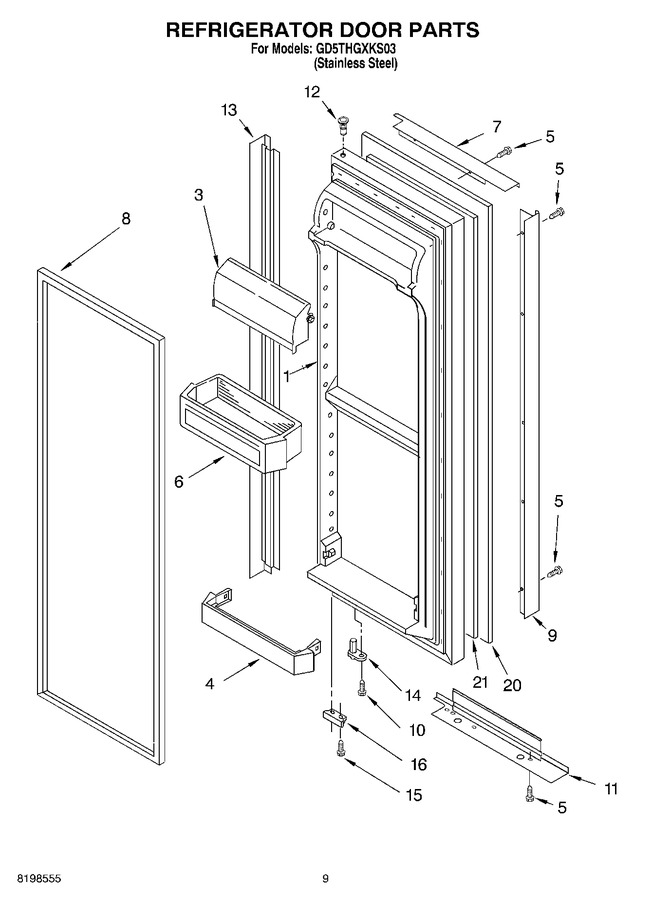

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2219864B | Refrigerator Door (includes Item 8) (black) |
|
- | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 4 | WP2156022 | Trivet, Shelf (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 5 | 3400897 | Screw |
|
- | |||||
| 6 | WPW10321304 | Shelf Bin (3) (Replaces: 2179607) |
|
Immediately | $ 44.73 | ||||
| 7 | 2220432S | Trim, Door Top (stainless Steel) |
|
- | |||||
| 8 | 2159083 | Door Gasket, Magnetic (black) (Replaces: 2221313) |
|
$ 251.49 | |||||
| 9 | 2206852S | Handle (stainless Steel) |
|
- | |||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 11 | 2220437S | Trim, Door Bottom (stainless Steel) |
|
- | |||||
| 12 | WP2182181 | Thimble, Top (Replaces: 2182180) |
|
$ 8.15 | |||||
| 13 | 2220430S | Trim, Hinge Side (stainless Steel) |
|
- | |||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 15 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 16 | 2206630B | Bracket, Door Stop (black) |
|
- | |||||
| 20 | 2206889S | Panel, Door (stainless Steel) |
|
- | |||||
| 21 | 2219803 | Filler Board |
|
- |
