01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

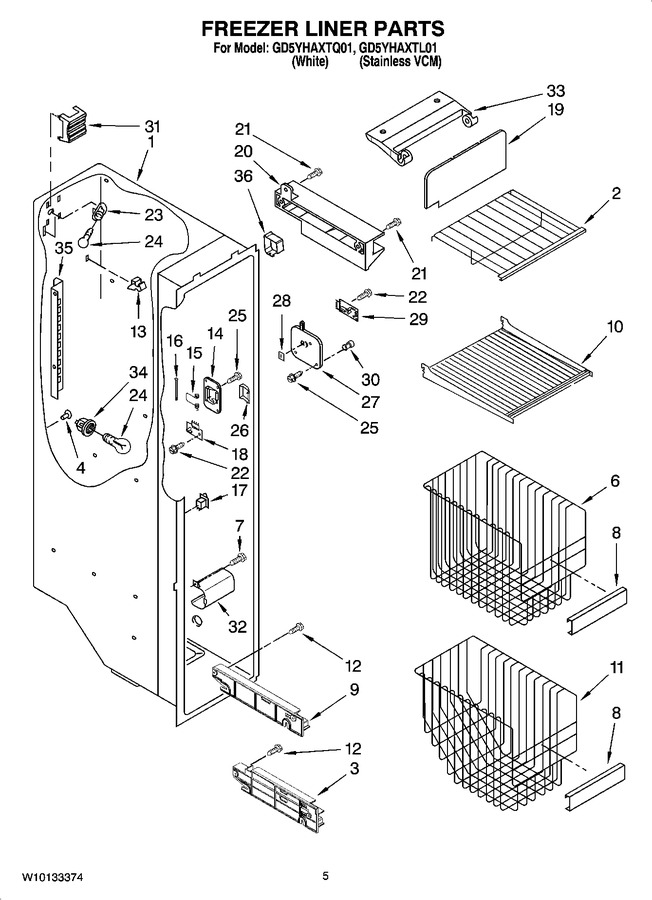

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2211746K		Shelf, Slide Out Upper		Appelez-nous	-
3	2301293		Track, Basket-dual (left)		Appelez-nous	-
3	2301294		Track, Basket-dual (right)		Appelez-nous	-
4	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
6	2301190		Basket, Tall				$ 90.43
7	W10142289		Screw   (Replaces: 3400893)				$ 9.61
8	2195905K		Trim, Basket		Appelez-nous	-
9	2301289		Shelf Track (right Side)				$ 86.80
9	2301290		Shelf Track (left Side)				$ 134.88
10	2205837K		Shelf				$ 42.67
11	2301191		Basket, Sloped				$ 96.19
12	W10759522		Screw (8)   (Replaces: W10004810)				$ 8.24
13	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
14	WP2198587		Cover, Emitter   (Replaces: 2198587)				$ 110.83
15	WP2198635		Spring   (Replaces: 2198635)				$ 91.43
16	WP2198634		Pin   (Replaces: 2198634)				$ 18.65
17	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
18	W11629974		P.c. Board Emitter   (Replaces: 2220398)			Immediately	$ 421.12
19	WP2255720		Cover, Ice Maker   (Replaces: 2255588)				$ 78.56
20	2212321		Slide, Ice Maker Mounting				$ 67.14
21	WP489478		Screw   (Replaces: 489478)				$ 8.18
22	2006254		Screw   (Replaces: 489214)				$ 13.79
23	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
24	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
25	WPW10142283		Screw   (Replaces: 8281185)				$ 10.33
26	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 50.68
27	2255558		Cover, Receiver				$ 41.19
28	2315398		Slide, Ice Maker Shut Off   (Replaces: 2255562)				$ 11.45
29	W11629974		P.c. Board, Receiver   (Replaces: 2255114)			Immediately	$ 421.12
30	WP2198643		Lens   (Replaces: 2198643)				$ 8.59
31	2198589		Light Shield		Appelez-nous	-
32	W11298978		Light Lens   (Replaces: 2212340)				$ 98.57
33	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.55
34	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
35	2320024		Ladder (left Side)		Appelez-nous	-
35	2320025		Ladder (right Side)		Appelez-nous	-
36	2303234		Shield, Wiring		Appelez-nous	-
