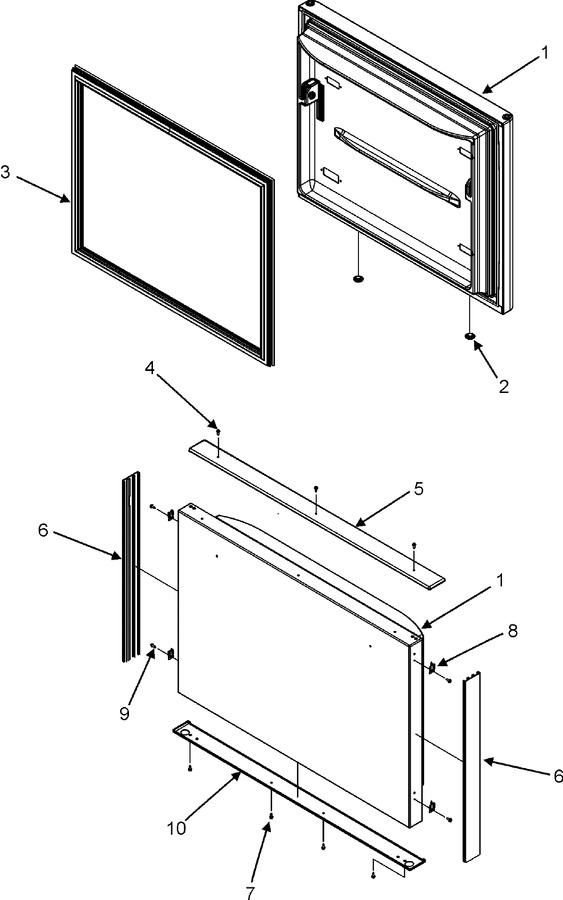

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002115		Door Assy., Frz. Foam (blk)	10	Appelez-nous	-
2	67004838		Plug, Vent (blk)	10			$ 11.21
3	W10436252		Gasket, Fz Door (blk)   (Replaces: 67003559)	10		Immediately	$ 362.28
4	WP3400805		Screw   (Replaces: 67006769)	10			$ 7.55
5	67006124		Trim, Door (top-stnls)	10	Appelez-nous	-
6	67006784		Trim, Door (side-stnls)	10	Appelez-nous	-
7	WP3400805		Screw   (Replaces: 67006769)	10			$ 7.55
8	67002451		Clip	10			$ 8.86
9	WP489128		Screw   (Replaces: 67006767)	10			$ 11.40
10	67006122		Trim, Door (btm-stnls)	10	Appelez-nous	-
