SELECT A DIAGRAM
01 - Top And Console
02 - Cabinet

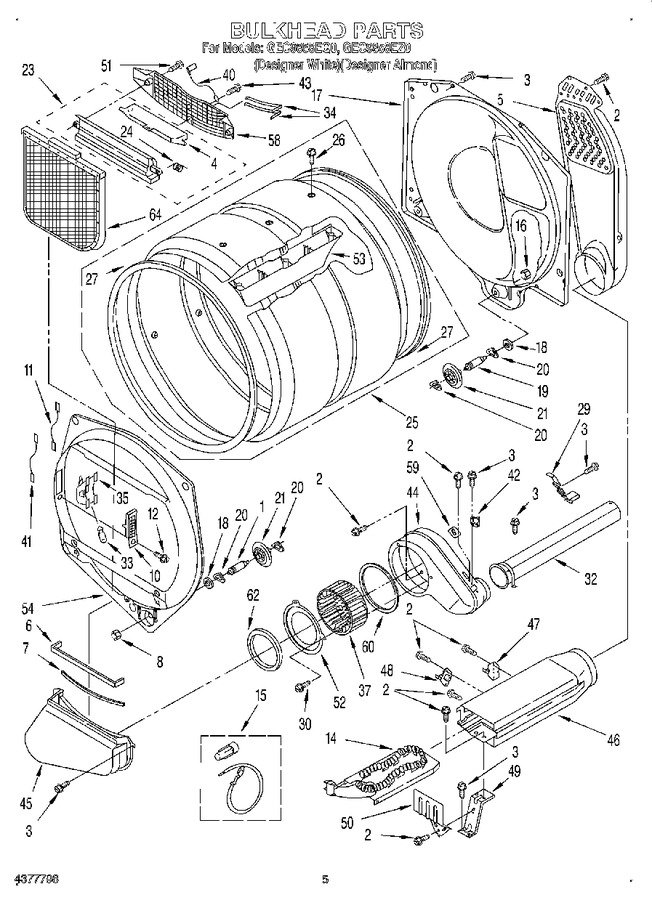

03 - Bulkhead
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 3399508) |
|
Immediately | $ 62.21 | ||||
| 2 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 3 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 4 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 203.72 | ||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 311.72 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.97 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.97 | ||||
| 8 | WP3359452 | Nut, 3/8 X 16 (r.h.) (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 10 | 3395196 | Lens, Light |
|
$ 5.84 | |||||
| 11 | 3395522 | Wire, Jumper (brown) |
|
- | |||||
| 12 | WP308685 | Screw, 10-16 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 14 | WP3387747 | Heater Element (Replaces: 3387747) |
|
Immediately | $ 84.64 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 16 | 3387709 | Nut, 3/8-16 (l.h.) |
|
$ 5.60 | |||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 350.11 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.03 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 3399509) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Support, Roller (Replaces: 3396801) |
|
Immediately | $ 28.50 | ||||
| 23 | W11129408 | Outlet Housing Assembly (Replaces: 3394985) |
|
Immediately | $ 53.28 | ||||
| 24 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.59 | |||||
| 25 | W10545924 | Complete Drum Assembly (Replaces: 697282) |
|
$ 435.06 | |||||
| 26 | 697777 | Screw, 11-16 X 7/8 |
|
- | |||||
| 27 | 280114 | Seal, Drum (Replaces: 697694) |
|
Immediately | $ 70.82 | ||||
| 29 | WP3395536 | Clip, Exhaust Pipe (Replaces: 3395536) |
|
$ 81.21 | |||||
| 30 | W11808444 | Screw, 8-32 X 5/16 (Replaces: 98139) |
|
- | |||||
| 32 | 279936 | Exhaust Pipe Assembly (includes Illus. No. 29) (Replaces: 3402715) |
|
$ 146.84 | |||||
| 33 | WP3395618 | Lamp, Incadescent (Replaces: 3395618) |
|
Immediately | $ 79.25 | ||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | 3394882 | Bracket, Lampholder |
|
- | |||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 59.07 | ||||
| 40 | 3392258 | Wire, Ground (sensor) |
|
- | |||||
| 41 | 3395521 | Wire, Jumper (black) |
|
- | |||||
| 42 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387134) |
|
Immediately | $ 35.90 | ||||
| 43 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 7.79 | ||||
| 44 | WP8544363 | Housing, Blower (Replaces: 697363) |
|
$ 152.63 | |||||
| 45 | 3390531 | Lint Duct Assembly |
|
- | |||||
| 46 | W10802681 | Box, Heater (Replaces: 3392537) |
|
Immediately | $ 129.67 | ||||
| 47 | 279769 | Thermal Cut-off (Replaces: 3398671) |
|
Immediately | $ 62.85 | ||||
| 48 | WP3390291 | Thermostat, High Limit 250~f (121.1~c) (60 Hz.) (Replaces: 3390291) |
|
Immediately | $ 94.94 | ||||
| 49 | 697700 | Bracket, Heater |
|
- | |||||
| 50 | 697699 | Shield, Heat |
|
- | |||||
| 51 | WP3387230 | Screw, 10-16 X 3/4 (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 52 | 279780 | Cover, Blower (includes Illus. No. 62) (Replaces: 697771) |
|
$ 92.95 | |||||
| 53 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 91.02 | ||||
| 54 | 697563 | Bulkhead, Front |
|
- | |||||
| 58 | 697767 | Grill, Outlet |
|
- | |||||
| 59 | WP3390719 | Fuse, Thermal (Replaces: 3390719) |
|
Immediately | $ 31.57 | ||||
| 60 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.88 | ||||
| 62 | WP8566209 | Seal, Lint Duct (Replaces: 697769) |
|
$ 55.45 | |||||
| 64 | W10120998 | Lint, Screen (Replaces: 3390721) |
|
$ 67.16 |
