SELECT A DIAGRAM

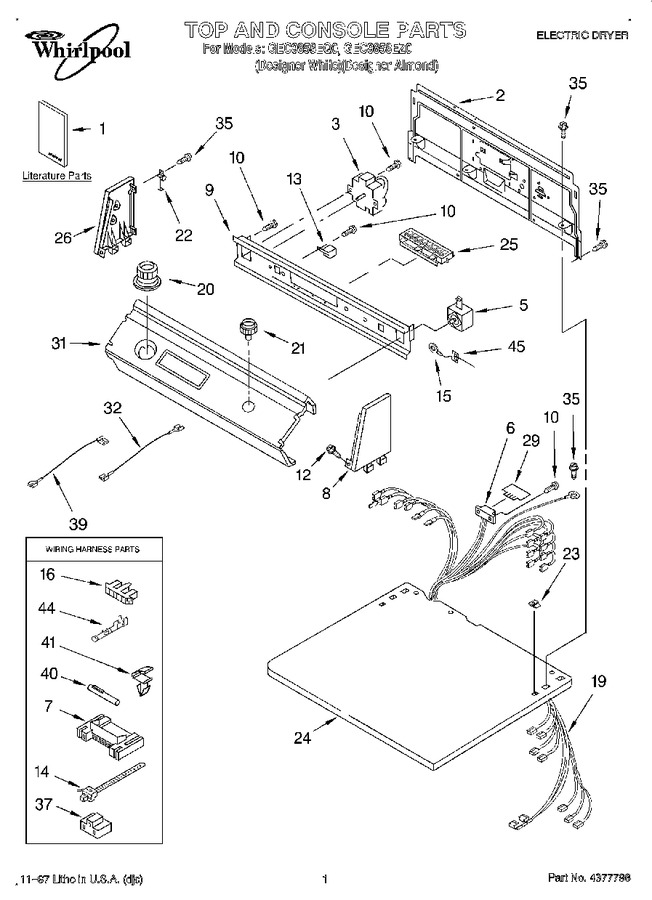

01 - Top And Console


02 - Cabinet


03 - Bulkhead


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Literature Parts		Appelez-nous	-
2	3976705		Panel, Rear Console		Appelez-nous	-
3	WP3976570		Timer, 60 Hz.   (Replaces: 3406708)				$ 368.17
5	WP3398094		Relay, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
6	3391885		Connector, Edge				$ 86.40
7	3395683		Connector (motor)			Immediately	$ 51.86
8	3358514		Cap, End (r.h.) (almond)		Appelez-nous	-
8	3358513		Cap, End (r.h.) (white)		Appelez-nous	-
9	3406916		Bracket, Control		Appelez-nous	-
10	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
12	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
13	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
14	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
15	3398893		Wire, Ground (includes No.45)		Appelez-nous	-
16	3397269		Connector, Timer				$ 25.55
19	3976486		Harness, Electric		Appelez-nous	-
20	WP3957752		Timer Knob Assembly (white)   (Replaces: 3406143)				$ 53.96
20	3957753		Timer Knob Assembly (almond)   (Replaces: 3406144)		Appelez-nous	-
21	WP3957800		Knob, Push-to-start (white)   (Replaces: 3406133)				$ 50.40
21	WP3957800		Knob, Push-to-start (almond)   (Replaces: 3406134)				$ 50.40
22	387402		Hinge, Assembly				$ 5.84
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
24	3976483		Top (almond)		Appelez-nous	-
24	3976482		Top (white)		Appelez-nous	-
25	3403969		Switch, Clean Touch (white)		Appelez-nous	-
25	3403970		Switch, Clean-touch (almond)		Appelez-nous	-
26	3358528		Cap, End (l.h.) (white)		Appelez-nous	-
26	3358529		Cap, End (l.h.) (almond)		Appelez-nous	-
29	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
31	3406923		Panel, Control (almond)		Appelez-nous	-
31	3406922		Panel, Control (white)		Appelez-nous	-
32	3401666		Wire, Jumper (yellow)		Appelez-nous	-
32	3401670		Wire, Jumper (black)		Appelez-nous	-
35	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
37	3401144		Connector, (pts Relay)				$ 12.20
39	3401667		Wire, Jumper (white)		Appelez-nous	-
40	351296		Receptacle		Appelez-nous	-
41	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
44	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
45	W10113937		Clip   (Replaces: 357572)				$ 10.83
	LIT3406077		Guide, Use & Care		Appelez-nous	-
	LIT677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
	LIT3406698		Label, Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
