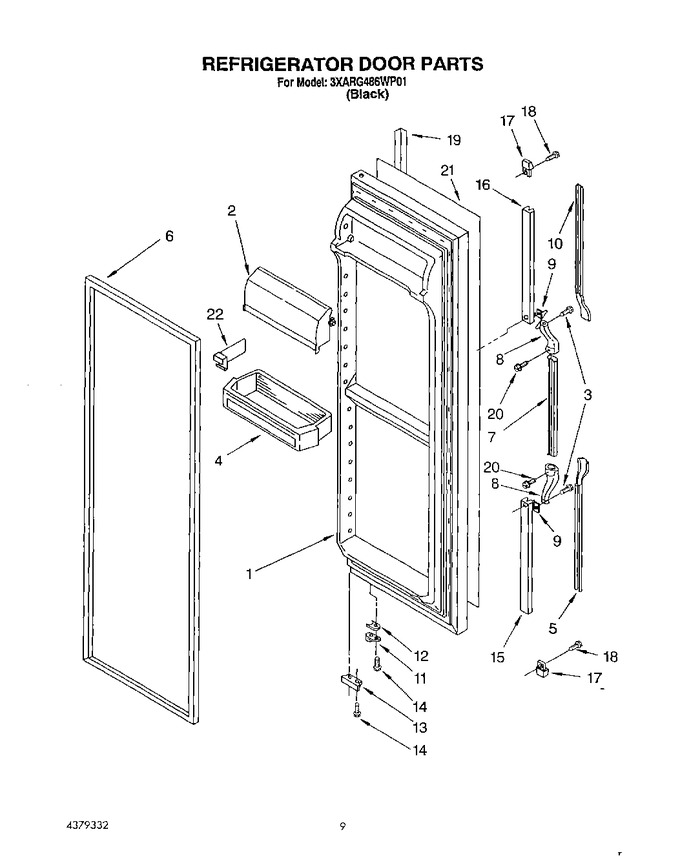

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163484		Refrigerator Door (includes No.6)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2156058)			Immediately	$ 85.16
3	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
4	2150134		Shelf Bin (4)		Appelez-nous	-
5	1118437		Insert, Handle		Appelez-nous	-
6	2159075		Door Gasket, Magnetic (service)   (Replaces: 2159079)			Immediately	$ 317.14
7	1118417		Handle, Center		Appelez-nous	-
8	1119359		End Cap, Center Handle		Appelez-nous	-
9	935075		Shim		Appelez-nous	-
10	1118435		Insert, Handle		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 27.36
12	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
13	2157609		Bracket, Door Stop		Appelez-nous	-
14	WP489069		Screw   (Replaces: 488938)			Immediately	$ 7.86
15	1119360		Retainer, Insert (bottom)		Appelez-nous	-
16	1119372		Retainer, Insert		Appelez-nous	-
17	2156220		End Cap (2)		Appelez-nous	-
18	489090		Screw		Appelez-nous	-
19	1119062		Trim, Door		Appelez-nous	-
20	489022		Screw		Appelez-nous	-
21	1124650		Panel, Black Glass		Appelez-nous	-
22	2152335		Divider (2)		Appelez-nous	-
