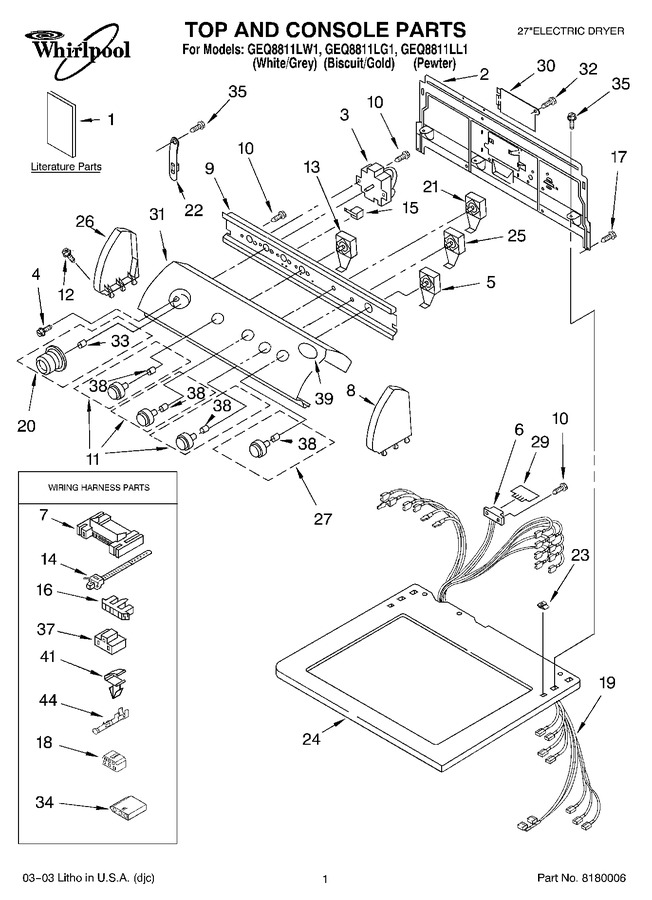

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8535837 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT677818 | Literature Parts (manual, Do-it- Yourself Repair (dryer)) |
|
- | |||||
| 1 | N/A | Following May Be Purchased Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | LIT8535840 | Literature Parts (instructions Installation) |
|
- | |||||
| 1 | LIT8541831 | Literature Parts (wiring Diagram) |
|
- | |||||
| 2 | 285909 | Panel, Rear Console (Replaces: 8317305) |
|
$ 248.97 | |||||
| 3 | WP3406725 | Timer, 60 Hz. (Replaces: 3406725) |
|
$ 368.58 | |||||
| 4 | 3400859 | Screw, Grounding (8-18 X 7/32) |
|
$ 13.22 | |||||
| 5 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 88.09 | ||||
| 6 | 3391885 | Connector, Edge |
|
$ 86.40 | |||||
| 7 | 3395683 | Connector (motor) |
|
Immediately | $ 51.86 | ||||
| 8 | 8271359 | Cap, End (r.h.) (white) |
|
- | |||||
| 8 | 8271362 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 8 | 3956023 | Cap, End (r.h.) (grey) |
|
- | |||||
| 9 | 8271316 | Bracket, Control |
|
- | |||||
| 10 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.50 | |||||
| 11 | 8538958 | Knob, Control (3) (for Geq8811lg1) |
|
- | |||||
| 11 | WP8538957 | Knob, Control (3) (for Geq8811lw1 & Geq8811ll1) (Replaces: 8538957) |
|
$ 55.74 | |||||
| 12 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.11 | |||||
| 13 | 8528330 | Switch, Temperature |
|
$ 223.71 | |||||
| 14 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 31.84 | |||||
| 15 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 16 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 17 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 18 | 3347243 | Connector 6-circuit |
|
- | |||||
| 19 | 8299956 | Harness, Electric |
|
- | |||||
| 20 | WP8557455 | Timer Knob Assembly (for Geq8811lw1 & Geq8811ll1) (Replaces: 8538953) |
|
$ 56.77 | |||||
| 20 | 8538954 | Timer Knob Assembly (for Geq8811lg1) |
|
- | |||||
| 21 | 3405154 | Switch, Wrinkle Shield |
|
$ 152.88 | |||||
| 22 | WP8568314 | Strap, Console (Replaces: 8318255) |
|
$ 7.78 | |||||
| 23 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 24 | 8535849 | Top (biscuit) |
|
- | |||||
| 24 | 8535848 | Top (white) |
|
- | |||||
| 24 | 8535850 | Top (grey) |
|
- | |||||
| 25 | 3405152 | Switch, End Of Cycle |
|
$ 131.07 | |||||
| 26 | 8271365 | Cap, End (l.h.) (white) |
|
- | |||||
| 26 | 8271368 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 26 | 3956024 | Cap, End (l.h.) (grey) |
|
- | |||||
| 27 | 8538959 | Knob, Push-to-start (for Geq8811lw1 & Geq8811ll1) |
|
$ 25.38 | |||||
| 27 | 8538960 | Knob, Push-to-start (for Geq8811lg1) |
|
- | |||||
| 29 | WPW10476828 | Control, Electronic (Replaces: 3390537) |
|
Immediately | $ 314.22 | ||||
| 30 | WPW10119283 | Cover, Terminal Block (Replaces: 8317342) |
|
$ 128.35 | |||||
| 31 | 8532625 | Panel, Control (includes Illus. 39) (grey) |
|
- | |||||
| 31 | 8532626 | Panel, Control (includes Illus. 39) (gold) |
|
- | |||||
| 32 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.82 | ||||
| 33 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 34 | 3936144 | Connector |
|
$ 20.21 | |||||
| 35 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 37 | 3401144 | Connector, (pts Relay) |
|
$ 12.20 | |||||
| 38 | WP8536939 | Spring Clip (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 39 | 3955776 | Medallion |
|
- | |||||
| 41 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 44 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 |
