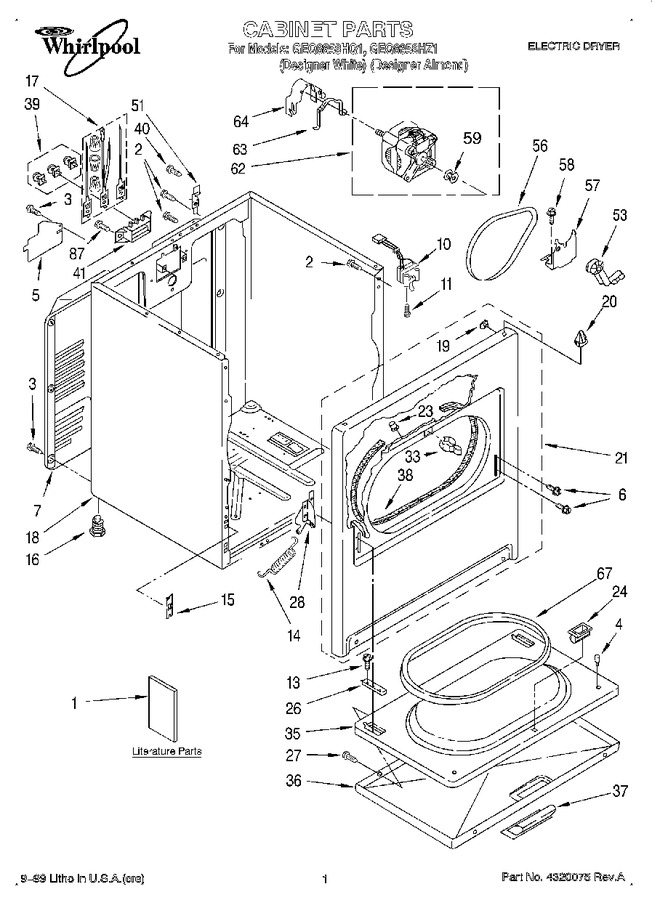

SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3977702		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
1	LIT3397618		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3406080		Literature Parts (use & Care Guide)		Appelez-nous	-
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
4	238614		Bumper				$ 80.76
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 599.76
6	342043		Screw, 10-32 X 3/8		Appelez-nous	-
7	280043		Panel, Rear   (Replaces: 3396805)				$ 341.30
10	WP3406107		Door, Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
11	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.70
13	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
14	WPW10041960		Spring, Door (2)   (Replaces: 692495)			Immediately	$ 40.67
15	W10854425		Clip, Front Panel (2)   (Replaces: 3394083)			Immediately	$ 15.56
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
16	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
17	279318		Terminal, Tinned & Brass (3) (includes Illus. 39)			Immediately	$ 100.99
18	3399586		Cabinet (includes Illus. Nos. 5,7,15,41 & 57) (almond)		Appelez-nous	-
18	3399585		Cabinet (includes Illus. Nos. 5,7,15,41 & 57) (white)		Appelez-nous	-
19	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 12.68
21	695621		Panel, Front (almond)		Appelez-nous	-
21	279443		Panel, Front (white)   (Replaces: 695620)				$ 386.20
23	279220		Clip, Felt Pad (3)   (Replaces: 685203)				$ 20.65
24	WP3389441		Catch, Door Assembly   (Replaces: 3389441)				$ 6.20
26	W11252547		Clip, Hinge (2)   (Replaces: 337189)				$ 21.39
27	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.19
28	WP8066056		Hinge, R.h.   (Replaces: 8066056)			Immediately	$ 98.56
28	WP8066057		Hinge, L.h.   (Replaces: 8066057)				$ 96.14
33	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
35	WP695737		Door, Rear   (Replaces: 695737)				$ 254.56
36	3393550		Door, Front (almond)		Appelez-nous	-
36	WP3393549		Door, Front (white)   (Replaces: 3393549)				$ 176.51
37	690271		Handle, Door (almond)		Appelez-nous	-
37	WP348721		Handle, Door (white)   (Replaces: 690270)				$ 77.89
38	W11035878		Seal & Bearing Assembly   (Replaces: 3406129)			Immediately	$ 78.78
39	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 47.37
40	W10850756		Screw, 10-32 X 5/8   (Replaces: 697776)				$ 7.76
41	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
56	341241		Belt, Drive			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 13.37
59	WP8066184		Pulley, 60 Hz.   (Replaces: 3394341)			Immediately	$ 51.02
62	279827		Motor Assembly 60 Hz.   (Replaces: 3976707)			Immediately	$ 191.95
63	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
64	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 7.82
67	W10906683		Seal, Door   (Replaces: 3390731)				$ 128.53
87	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
	LIT677818		Dryer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
