SELECT A DIAGRAM
New Model Search:

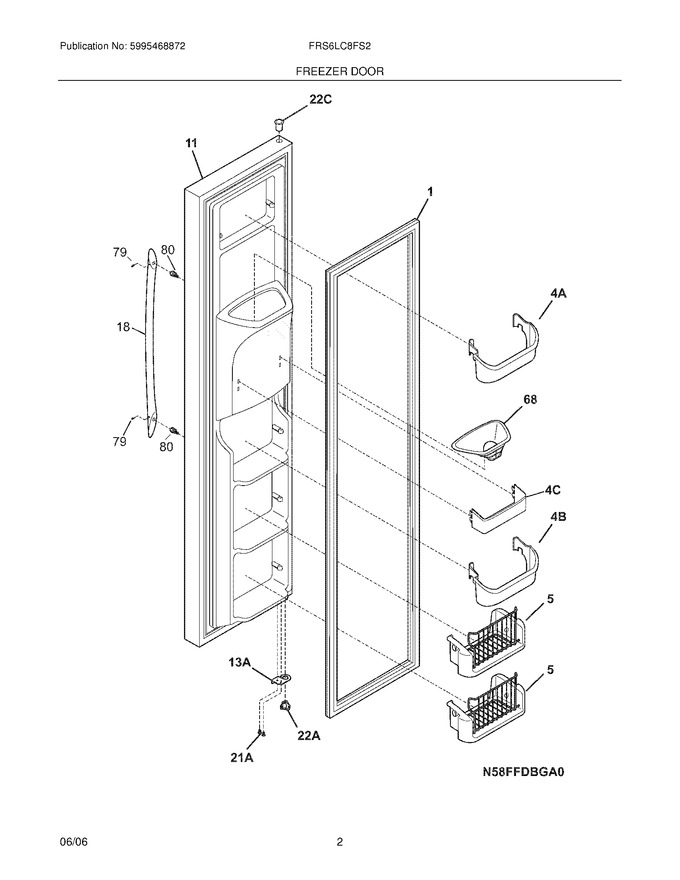

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 241545005 | Bin-tilt Out,tilt-out |
|
$ 145.16 | |||||
| 11 | 241668500 | Door-frzr,stainless ,complete Assy |
|
$ 740.04 | |||||
| 18 | 240536813 | Handle-door,stainless Steel |
|
$ 90.67 | |||||
| 68 | 241525101 | Chute-ice |
|
$ 91.39 | |||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 36.67 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 13A | 240581906 | Door Stop,black ,frzr |
|
$ 81.11 | |||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598402) |
|
$ 13.20 | |||||
| 22A | 242000502 | Bearing-hinge(frz),black ,closer (Replaces: 240328204) |
|
$ 7.98 | |||||
| 22C | 240328404 | Bearing-hinge,black ,upper |
|
$ 25.41 | |||||
| 4A | 240334201 | Bin-door,frzr-upper |
|
$ 74.68 | |||||
| 4B | 240351601 | Bin-door |
|
Immediately | $ 65.26 | ||||
| 4C | 240351701 | Bin-door,frzr-dispenser |
|
$ 74.81 | |||||
| F1 | 241786014 | Gasket-frzr Door,black ,magnetic (Replaces: 241674806) |
|
$ 105.74 | |||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 526.84 | |||||
| NI | 240545201 | Connector-water,straight (Replaces: 240352102) |
|
$ 81.90 | |||||
| NI | 240552102 | Harness-wiring,door |
|
$ 77.60 |
