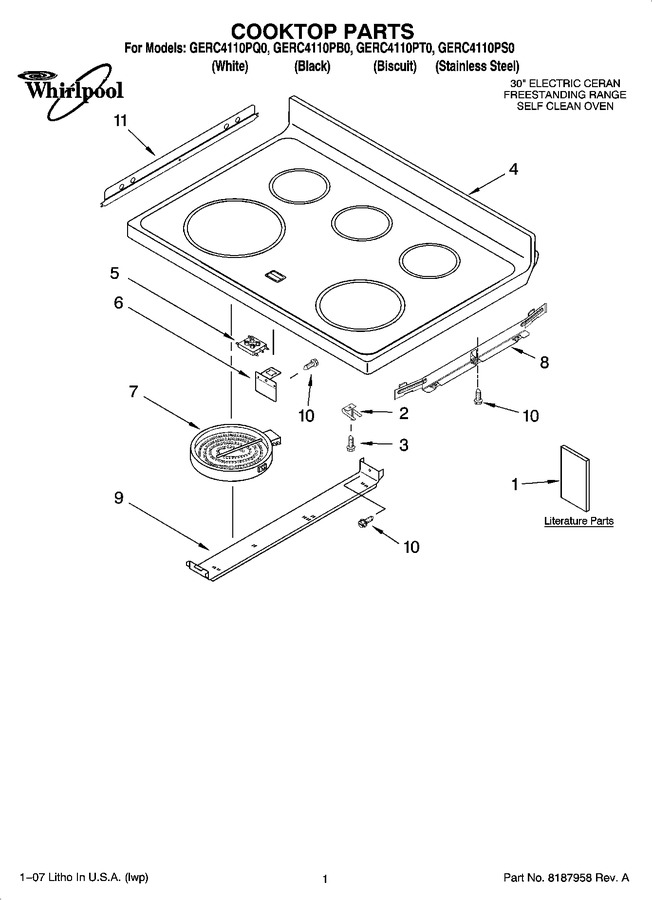

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8523048 | Template, Anti-tip (english/spanish) |
|
- | |||||
| 1 | 9758899 | Use & Care Guide |
|
- | |||||
| 1 | 9758015 | Tech Sheet |
|
- | |||||
| 1 | 9756848 | Installation Instructions |
|
- | |||||
| 1 | 9756849 | Template, Anti-tip (english/french) |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | 9758723 | Cooktop (black) |
|
- | |||||
| 4 | 9758722 | Cooktop (white) |
|
- | |||||
| 4 | 9758724 | Cooktop (biscuit) |
|
- | |||||
| 5 | 8523739 | Light, Indicator (hot Surface) |
|
$ 120.71 | |||||
| 6 | 8523741 | Bracket, Ind Light |
|
- | |||||
| 7 | W10823692 | Element, Surface (2400/1000 W - Rf) (Replaces: 8523693) |
|
Immediately | $ 227.59 | ||||
| 7 | W10823711 | Element, Surface (1200 W - Rr) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 7 | WP8523699 | Element, Surface (100 W - Cr) (Replaces: 8523699) |
|
$ 180.44 | |||||
| 8 | 8524132 | Shield, Wiring |
|
- | |||||
| 9 | 8273720 | Bracket, Element ((1)) |
|
- | |||||
| 9 | 8272791 | Bracket, Element ((2)) |
|
- | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | 9758893 | Heat Shield |
|
- |
